Model: TEJ1325
Working area: 1300*2500mm
Power tube: Reci 90w, 100w, 130w, 150w, 180w,260W, 280w, 300w, 500w
Control system: Ruida 6442S controller
Transmission: Shanghai Fulong Belt
Guide rails: Taiwan Hiwin 20mm square rails
Table model: Blade table or Honeycomb table
Motor:450B stepper motor
Driver:Leadshine driver 583
Max cutting speed: 0-600mm/s
Max engraving speed: 0-1000mm/s
Product DetailConfigurationApplicationHS CodeProduct Tags
TEJ6090 CO2 laser cutting machine. It is one very very popular model. Whether it is a craft enthusiast or a company. TEJ6090 is very welcomed by all the customers. Many customer purchase the TEJ6090 laser cutting machine cut wood to make crafts. Many advertising company, especialy newly established advertising agency. They use the TEJ6090 cutting acrylic. The cutting affect is very very perfect. And the china price for TEJ6090 laser cuting machine. Help them save runing company cost. If you want to purchase one laser machine, but you do not know how to choose, please kindly contact with us. We will give you the most professional advise.
1. The co2 laser engraving machine can engrave and cut many non-metallic materials, and has a wide range of applications.
2. Non-contact processing will not cause mechanical extrusion or mechanical stress to the material. There are no "knife marks" and the machined surface is very smooth.
3. Adopt Reci laser tube, which is of good quality and durability, especially after-sale, which is famous all over the world.
4. The Ruida control system has good stability and can improve the accuracy of the machine. Good compatibility, maximize the performance of the machine.
5. The blade table is of good material, not easy to deform, durable and suitable for processing large materials such as acrylic plates.

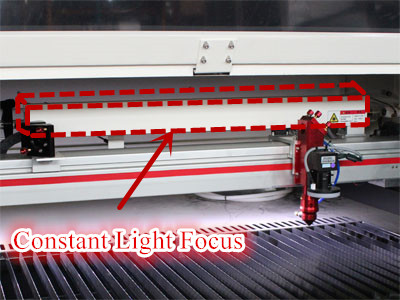

Constant Light Focus: This design ensures that the light is always in the most focused focus. Even when the machine is cutting the very edge of the material, the cutting affect still can keep the best!

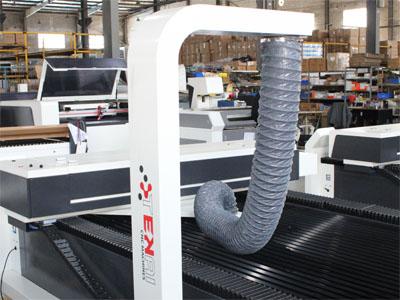

Exhaust Gas Collection：CO2 laser cutting machine with 4x8ft, customer will use it for cutting all kinds of non matel materials. Non metal materials will create a lot exhaust gas as the temperature increases. To avoid the exhaust gas from being dispersed into the air and causing pollution to the atmosphere, or being inhaled into the body and affecting health. Customer can use this structure collect, then process it.
Reci/Yongli laser tube, 90w, 100w, 130, 150w, 180w, 260w, 280w, 300w, 500w. Choose the suitable laser tube according to your job requirements.
Aluminum knife table, high hardness and not easy to deform, suitable for processing large materials.
coupler connect with gear, Fulong belt
Singapore Lens and mirrors, Efficient conduction, focused light source，low loss
Option parts:
1) CCD camara 2) Up and down table
# work area is 1300 * 2500 mm
# 90w, 100w, 130w, 150w, 180w, 260w, 280w, 300w, 500w
# Ruida control system
# Stepper motor and Leadshine driver
# Taiwan HIWIN square rails
# Shanghai Fulong Belt
# Singapore Lens and mirrors
# Table of blades
# Red light pointer
# Air pump
# Exhaust fan
# Standard tool box
Option parts:
1) Up and down table
2) Rotary as 3d engraving
3) CCD camera for edge cutting
4) Water chiller
|
NO. |
Model | TEJ1325 |
|
1 |
Laser medium | CO2 |
|
2 |
Working area | 1300*2500mm |
|
3 |
Working table | Knife blade table |
|
4 |
Laser power | 90W~500W |
|
5 |
Power Supply | 220V/50Hz; 110V/60Hz (optional) |
|
6 |
Min line width | ≤0.15mm |
|
7 |
Positon accuracy | 0.01mm |
|
8 |
Repetition accuracy | 0.02mm |
|
9 |
Cutting speed | 150mm/s |
|
10 |
Guide rail | Taiwan Hiwin square rails |
|
11 |
Transmission method | Belt Transmission |
|
12 |
Drive system | Leadshine driver and stepper motor |
|
13 |
Cooling system | Water-cooling |
|
14 |
Control system | Ruida control system |
|
15 |
Compatible software | Coreldraw, Photoshop, AutoCAD, Tajima |
|
16 |
Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
|
17 |
Working environment | 0-45℃, |
|
18 |
Operating Humidity | 5-95% |
|
19 |
Net weight | 300kg |
|
20 |
Gross weight | 380kg |
Materials:
Glass, organic glass, leather, cloth, acrylic, wood, MDF, PVC, plywood, maple leaf, double-color sheet, bamboo, plexiglas, paper, leather, marble, ceramics etc nonmetal materials.
Industries:
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry.
CNC HS code: 8465990000
Laser HS code: 8456110090
Oscillating knife cutting machine：8453800000
