Model: TEJ6090
Working area: 600*900mm
Power tube: Reci 90w, 100w, 130w, 150w, 180w
Control system: Ruida 6442S controller
Transmission: Shanghai Fulong Belt
Guide rails: Taiwan Hiwin 20mm square rails
Table model: Blade table or Honeycomb table
Motor:450B stepper motor
Driver:Leadshine driver 583
Max cutting speed: 0-600mm/s
Max engraving speed: 0-1000mm/s
Product DetailConfigurationApplicationHS CodeProduct Tags

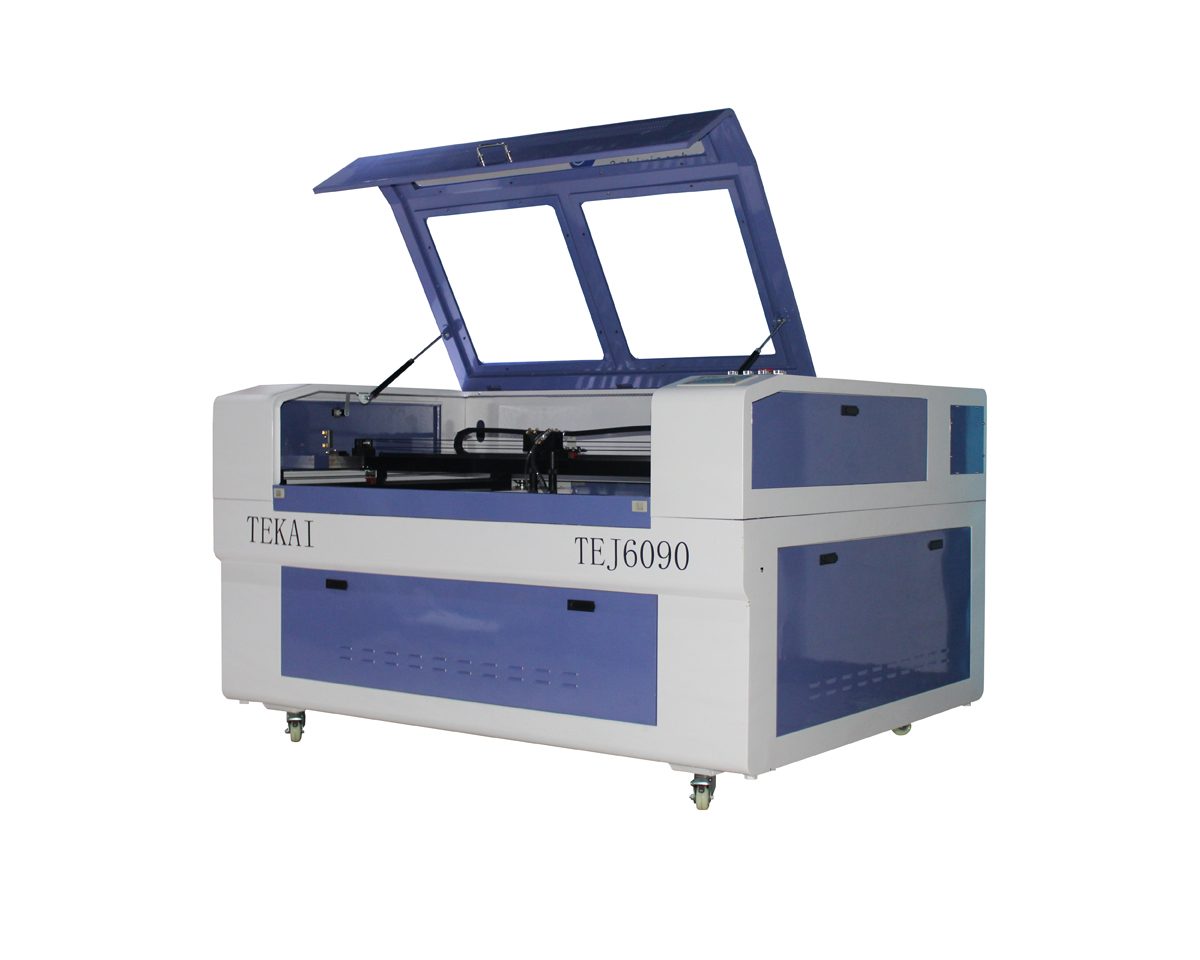

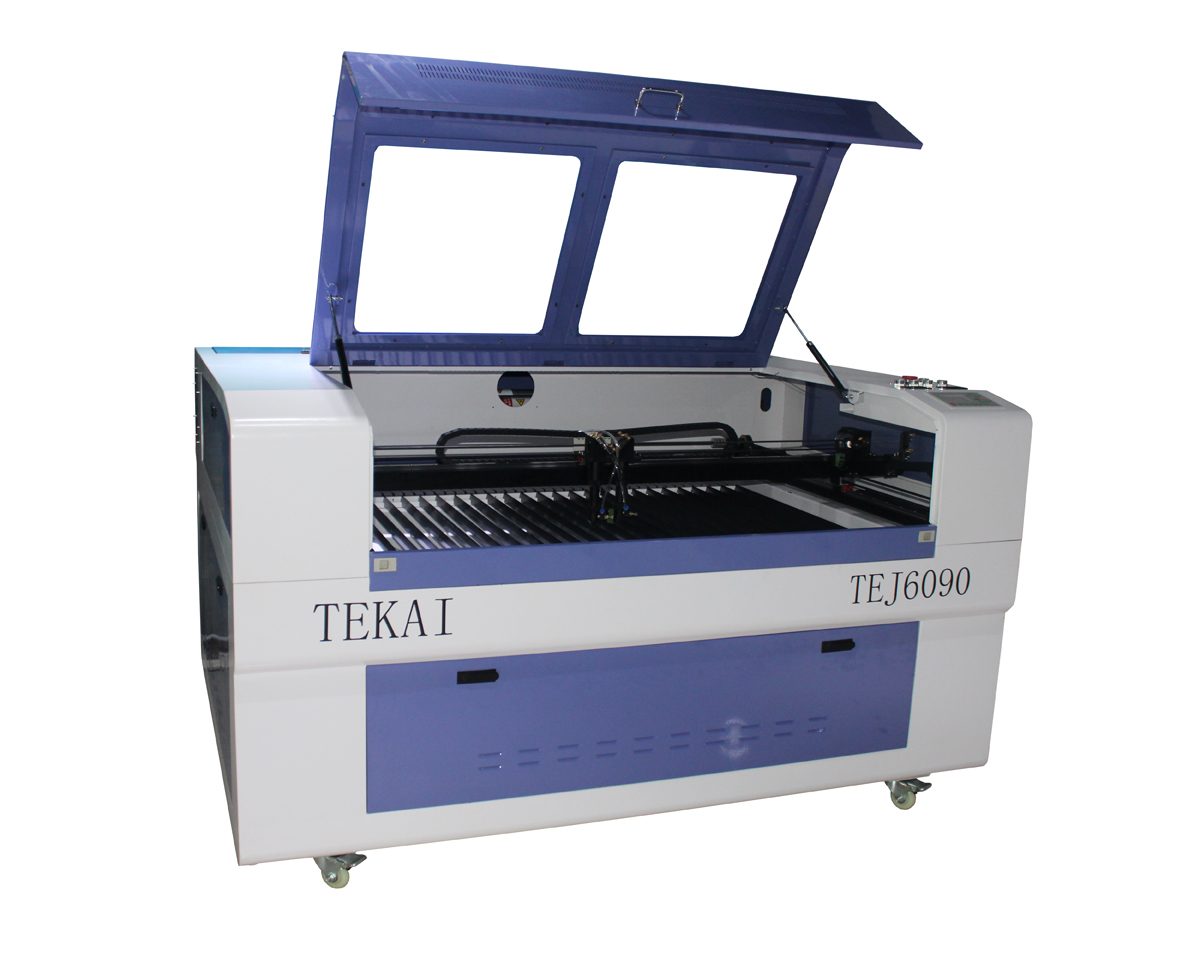

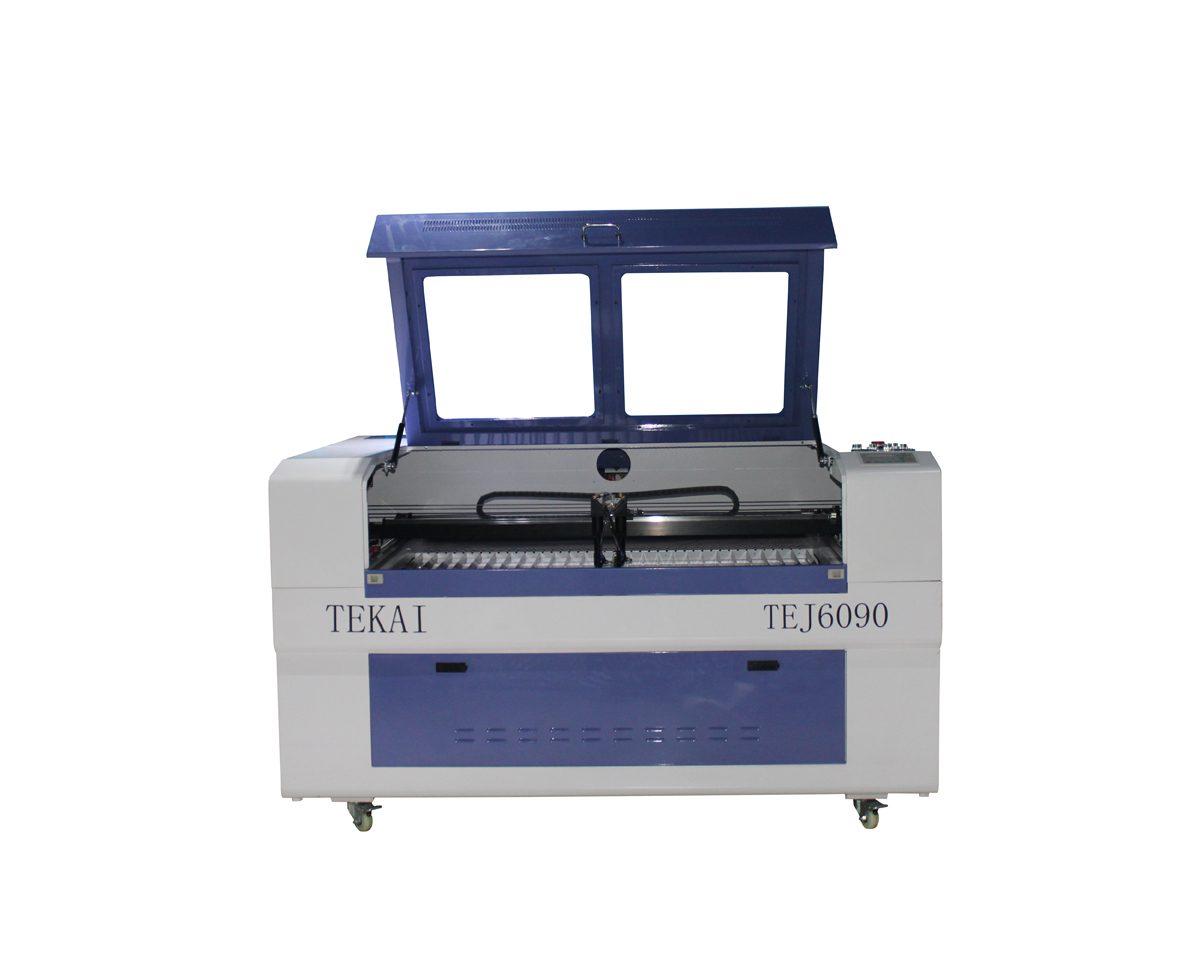

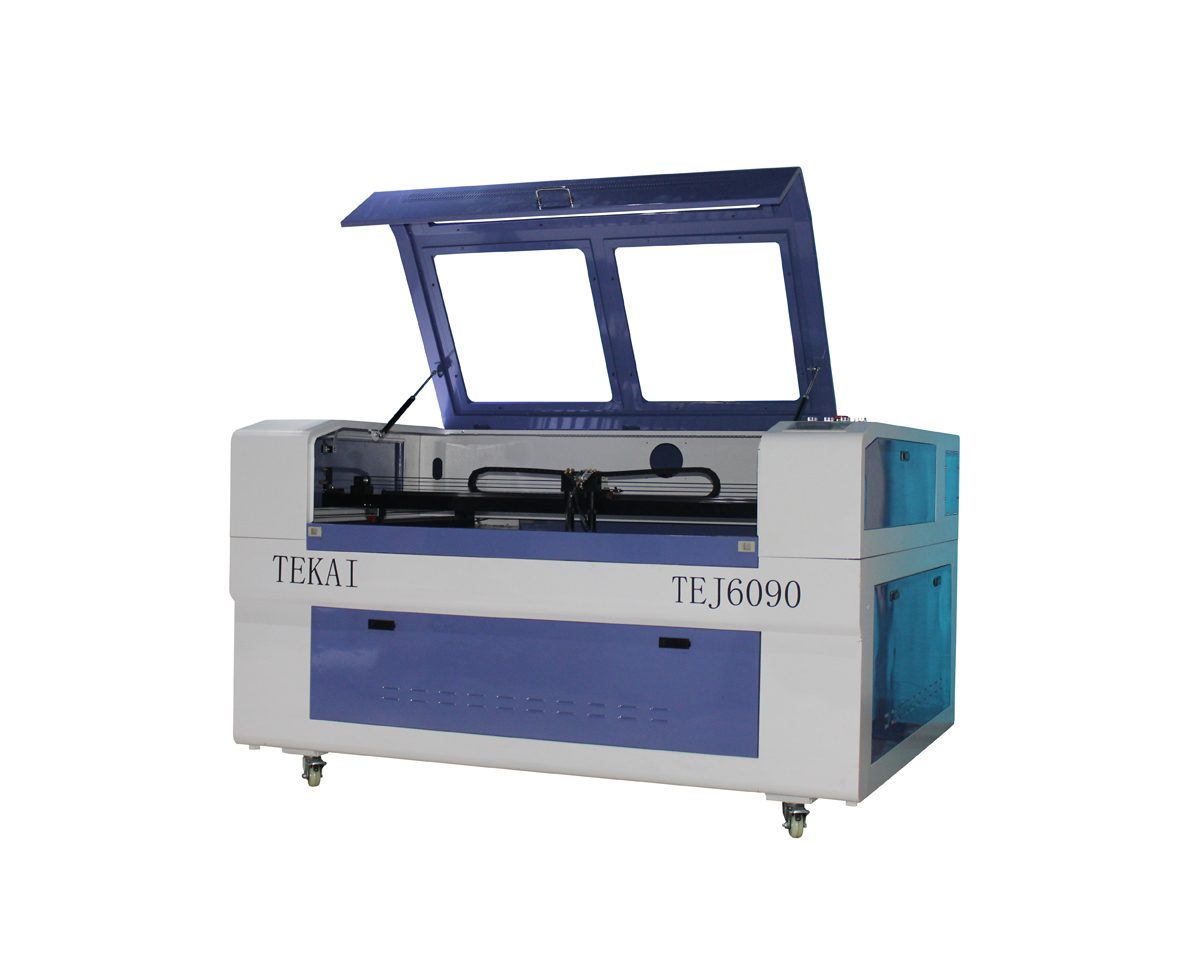

TEJ6090 CO2 laser cutting machine. It is one very very popular model. Whether it is a craft enthusiast or a company. TEJ6090 is very welcomed by all the customers. Many customer purchase the TEJ6090 laser cutting machine cut wood to make crafts. Many advertising company, especialy newly established advertising agency. They use the TEJ6090 cutting acrylic. The cutting affect is very very perfect. And the china price for TEJ6090 laser cuting machine. Help them save runing company cost. If you want to purchase one laser machine, but you do not know how to choose, please kindly contact with us. We will give you the most professional advise.
1. The co2 laser engraving machine can engrave and cut many non-metallic materials, and has a wide range of applications.
2. Non-contact processing will not cause mechanical extrusion or mechanical stress to the material. There are no "knife marks" and the machined surface is very smooth.
3. Adopt Reci laser tube, which is of good quality and durability, especially after-sale, which is famous all over the world.
4. The Ruida control system has good stability and can improve the accuracy of the machine. Good compatibility, maximize the performance of the machine.
5. The blade table is of good material, not easy to deform, durable and suitable for processing large materials such as acrylic plates.
Laser head, multiple laser heads are optional.
The Ruida control system has good movement performance, which can greatly improve the movement efficiency, and has high precision and good stability.
Reci laser tube, 90w, 100w, 130, 150w, 180w. Choose the suitable laser tube according to your job requirements.
Aluminum knife table, high hardness and not easy to deform, suitable for processing large materials.
coupler connect with gear, Fulong belt
Option parts:
1) CCD camara 2) Up and down table
# work area is 600 * 900 mm
# 90w, 100w, 130w, 150w, 180w
# Ruida control system
# Stepper motor and Leadshine driver
# Taiwan HIWIN square rails
# Shanghai Fulong Belt
# Singapore Lens and mirrors
# Table of blades
# Red light pointer
# Air pump
# Exhaust fan
# Standard tool box
Option parts:
1) Up and down table
2) Rotary as 3d engraving
3) CCD camera for edge cutting
4) Water chiller
|
NO. |
Model | TEJ6090 |
|
1 |
Laser medium | CO2 |
|
2 |
Working area | 600*900mm |
|
3 |
Working table | Knife blade table |
|
4 |
Laser power | 90W~180W |
|
5 |
Power Supply | 220V/50Hz; 110V/60Hz (optional) |
|
6 |
Min line width | ≤0.15mm |
|
7 |
Positon accuracy | 0.01mm |
|
8 |
Repetition accuracy | 0.02mm |
|
9 |
Cutting speed | 150mm/s |
|
10 |
Guide rail | Taiwan Hiwin square rails |
|
11 |
Transmission method | Belt Transmission |
|
12 |
Drive system | Leadshine driver and stepper motor |
|
13 |
Cooling system | Water-cooling |
|
14 |
Control system | Ruida control system |
|
15 |
Compatible software | Coreldraw, Photoshop, AutoCAD, Tajima |
|
16 |
Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
|
17 |
Working environment | 0-45℃, |
|
18 |
Operating Humidity | 5-95% |
|
19 |
Net weight | 300kg |
|
20 |
Gross weight | 380kg |
Materials:
Glass, organic glass, leather, cloth, acrylic, wood, MDF, PVC, plywood, maple leaf, double-color sheet, bamboo, plexiglas, paper, leather, marble, ceramics etc nonmetal materials.
Industries:
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry.
CNC HS code: 8465990000
Laser HS code: 8456110090
Oscillating knife cutting machine：8453800000
