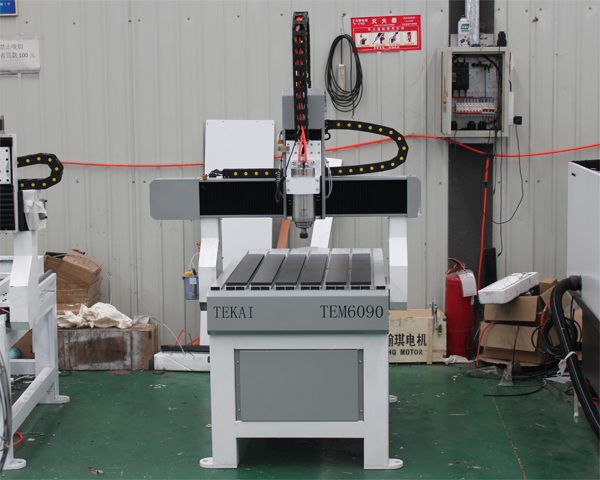

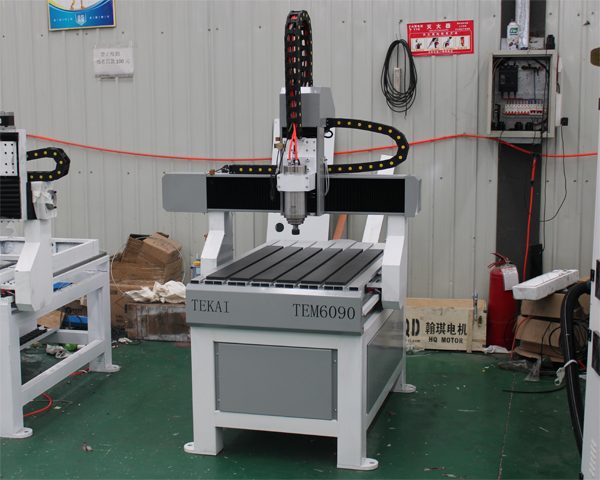

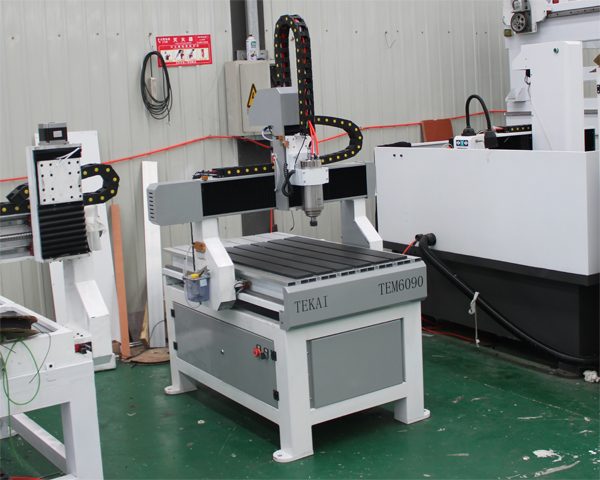

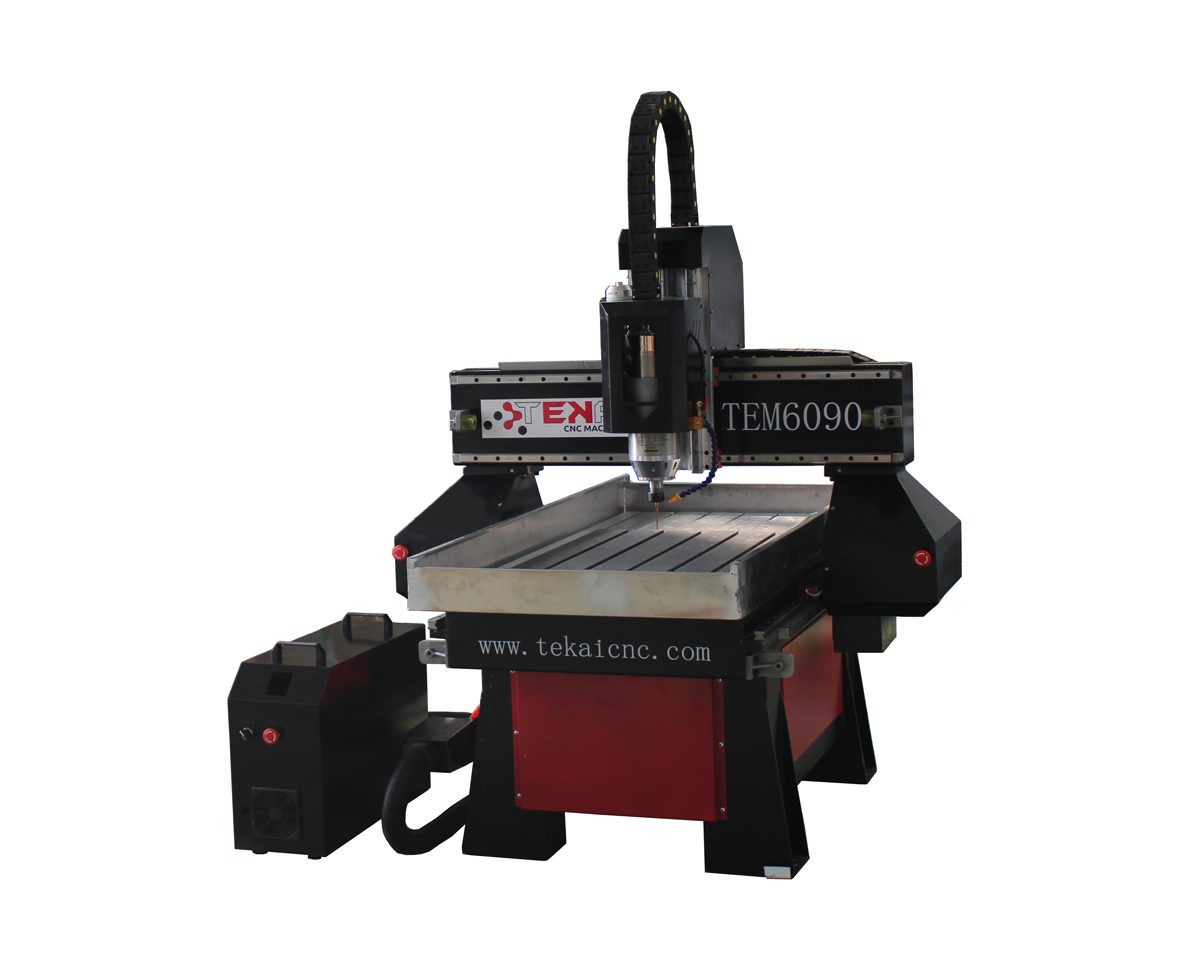

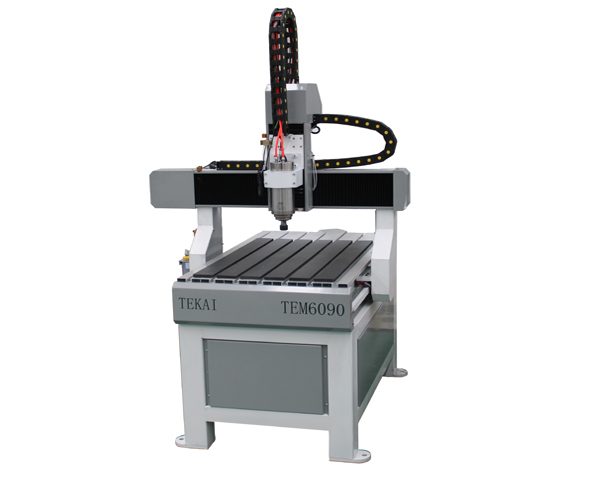

TEM6090 small cnc router hobby working aluminum cutting and engraving Featured Image

TEM6090 small cnc router hobby working aluminum cutting and engraving

Model:TEM6090

Working area:600*900*200mm

Structure:Cast iron body

Spindle:1.5kw water cooling spindle

Rotating speed:0-24000rpm/min

Transmission:Taiwan TBI ball screw

Motor:450A stepper motor

Driver:Leadshine M860 driver

Control system:Mach3 controller

Inverter:Fuling inverter

Table:T-slot table with PVC

Rails:Taiwan Hiwin 20mm square rails

Working voltage:220v, 1 phase, 50/60Hz

E-mail: info@tekaicnc-laser.com

Product Detail

Configuration

Application

HS Code

Product Tags

Tekai TEM6090 CNC drilling and milling machine uses gray color number: RAL7000, it is a very popular color. Exquisite design and high quality, loved by most customers. This machine has many uses and can handle almost all non-metals and soft metals such as aluminium copper.

Features

1.TEM6090 CNC drilling and milling machine is cast iron, and the column is also cast iron. Manufactured in accordance with industrial standards, it will not deform after long-term use, and is firm and stable.

2.TEM6090 CNC drilling and milling machine adopts high performance water cooling spindle, low noise. Stepper motor and Leadshine M860 driver (6N/S) provide powerful motivation for the machine, and help you finish your work.

3.TEM6090 CNC drilling and milling machine has high accuracy. We choose Taiwan TBI ball screw for X Y Z axis transmission, ensuring fine engraving without jagged. What’s more, the X-axis has a dust-proof cloth to ensure the cleanliness of the machine.

4.TEM6090 CNC drilling and milling machine adopts Taiwan Hiwin 20mm square rails, which brand is very famous in China. It can bear the weight of gantry, ensure the gantry move smoothly.

5.By the way, We can produce machines of various sizes and configurations according to the special needs of customers. Such as air cooling spindle, rotary axis, servo motor ATC CNC or other control system, etc.

T-slot table with PVC, it can fix small materials very well, very convenient.

1.5kw water cooling spindle, this spindle requires no maintenance, uses industry standard ER collets. Fully programmable speed is 6000 to 24000 RPM.

Mach3 control system, it is very rich in features, works on most Windows PC's to control the motion of motors (stepper & servo) by processing G code.

Stepper motor and Leadshine M860 driver, these motors require no regular maintenance, therefore reducing any maintenance downtime.

Fuling inverter, significantly reduced spindle maintenance cost even maintenance-free, ensure high efficiency cutting and high machining accuracy, powerful torque output at low speeds and high speed.

# Working area: 600*900*200 mm

# Iron cast body

# Mach3 control system

# 1.5kw water cooling spindle

# 450A step motor and Leadshine M860 driver

# Taiwan HIWIN Square 20mm rails

# X Y Z Taiwan TBI ball screw

# Fuling inverter

# Tool box

# T-slot table with pvc table

# Plywood box package

# Tool sensor

# tools for cutting and engraving

# foot for adjust level

# all the accessories for working you need

Model	TEM6090
Working area	600900200mm
Structure	Cast iron body
Spindle	1.5kw water cooling spindle
Rotating speed	0-24000rpm/min
Transmission	Taiwan TBI ball screw
Motor	450A stepper motor
Driver	Leadshine M860 driver
Control system	Mach3 controller
Inverter	Fuling inverter
Table	T-slot table with PVC
Rails	Taiwan Hiwin 20mm square rails
Working voltage	220v, 1 phase, 50/60Hz
Optional parts	2.2/3.0kw water cooling spindle
	Water tank
	Rotary axis
	Servo motor and driver
	Other control system

Application industry:

1. Woodworking industry: processing all kinds of wood MDF PVC boards.

2. Advertising industry: production of advertising signs with logos, acrylic cutting, blister molding, and production of various materials for advertising and decoration products.

3. Other industries: It can engrave all kinds of reliefs, which are widely used in the craft gift industry.

Application materials:

TEM6090 CNC drilling and milling machine can processing many materials: Aluminum copper cutting, aluminum plate, aluminum composite panel, aluminum honeycomb panel, aluminum profile, 3D engraving process, wave board production, all kinds of artificial board special-shaped cutting, LED, neon lamp slot literal cutting, plastic light box mold making. Acrylic, copper board, PVC board, artificial stone, MDF board and other sheet processing.
