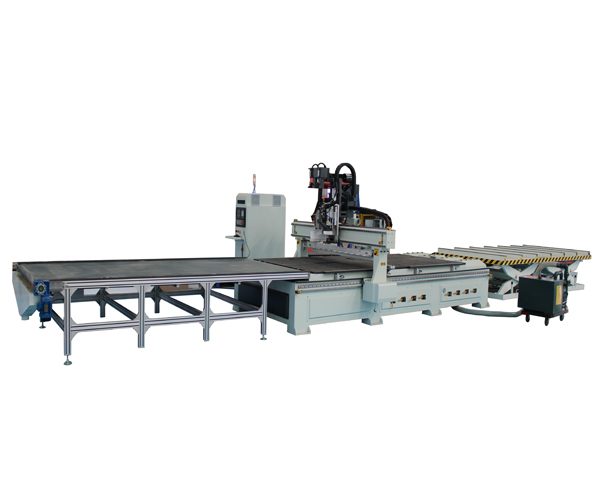

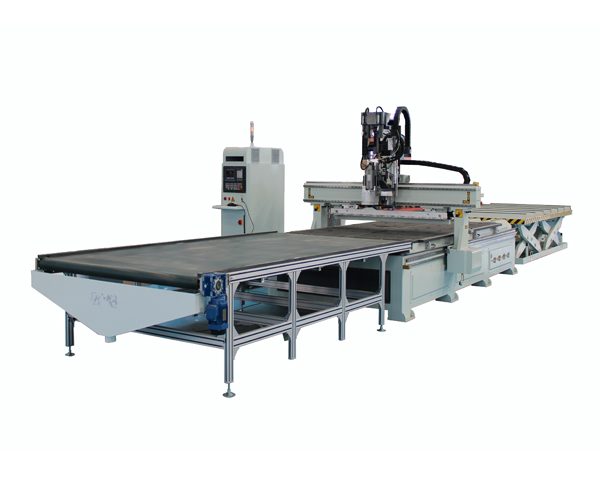

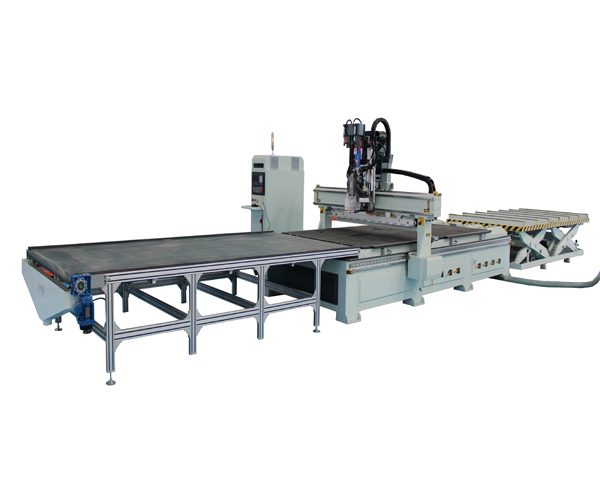

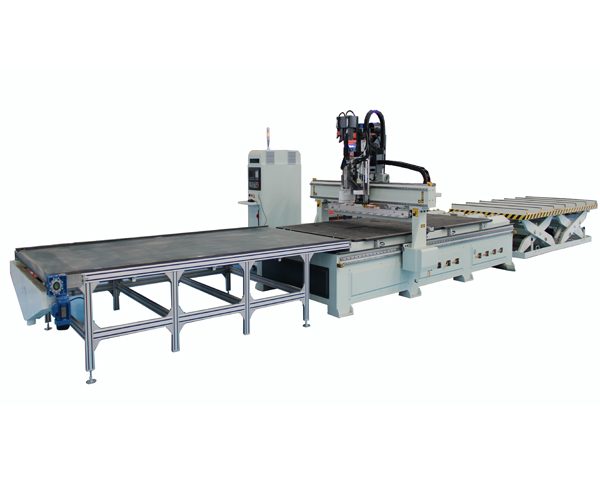

Model: TEM1325AF Auto ATC cnc router
Brand:Tekai cnc
Working area: 1300x2500x200mm
CNC or not: CNC
Original: CN(Origin)
Delivery Time: 20-25 working Days
Certificatres: CE, FDA, ISO
Customized: Accept
Voltage: AC 220V/380V, 1P/3P, 50HZ/60HZ
Supply Ability: 90 Sets/Month
Packing size: 3940X2280X1600mm
Payment Terms: T/T(Telegraphic Transfer), Mastercard, e-Checking
Product DetailConfigurationApplicationHS CodeProduct Tags
1. This is one equipment with multi-functions, autoloading, drilling vertical holes, grooving, cutting, and auto unloading.
2. Automatic typesetting and optimization can improve the utilization of material, saving time and material.
3. Automatic loading and unloading, saving labor.
4. High rigidity structure design, and the material stress analysis and tempering, ensure machine accuracy nondeformation.
5. Fully automatic loading and unloading system, no need to push or move materials manually, promise accurately positioned, greatly improve production efficiency, multifunctional integrated machine.
6. All electronic component adopted European standard (CE certified) components, such as French Schneider, Japan OMRON limit switch.

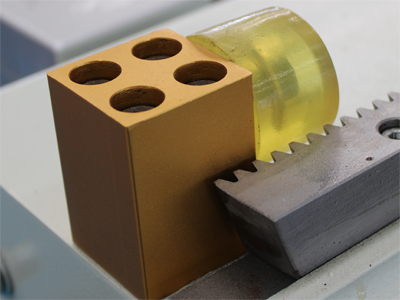

7. Imported ball screw, gear rack, ensure that the machine precision.

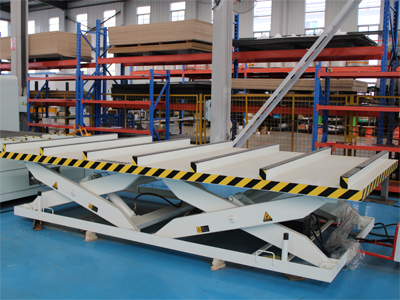

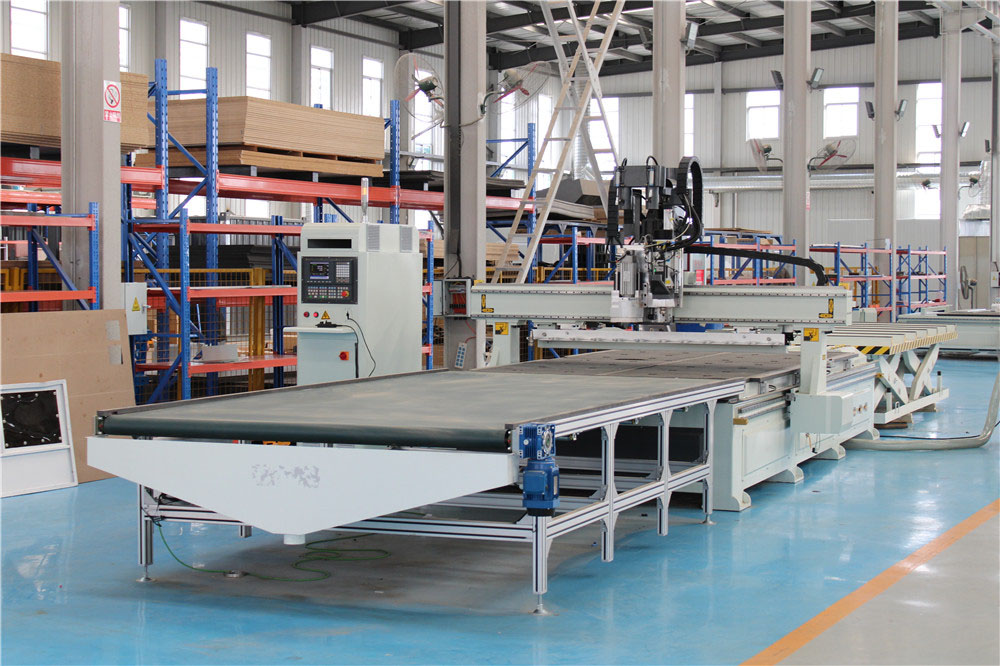

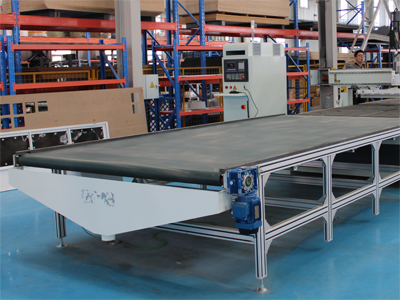

Loading system, it will help the machine feeding the system automatic, increase the machine effient.

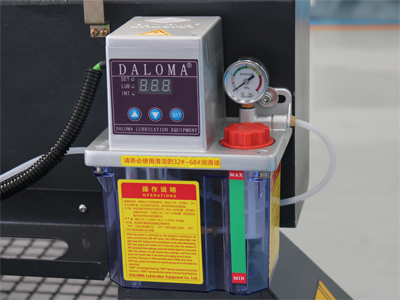

Oil lubracation: high quality oil lubracation, durable, it will make the machine working longer time.
Taiwan Syntec 6MB control system, Taiwan LNC control system as option. All the most professional control system.
HQD drilling parts, high effient drill different holes for the wood plate. Itlay Hiteco as option parts.
HQD 9.0kw ATC air cooling spindle, 24000RPM/MIN.
Pure metal hard limit switch, very strong. Keep the machine moving very safe.
Oil lubracation: high quality oil lubracation, durable, it will make the machine working longer time.
Electricity Wire: Higher quality cable, every cable all are very high quality. No any risk. Keep the machine is very safe.
# Working area: 1300*2500*200 mm
# Vacuum mixed T-slot table with 7.5kw vacuum pump
# Taiwan Syntec control system with screen.
# Loading and Unloading system
# 9.0kw HQD ATC air cooling spindle, 24000 rpm/m.
# HQD drilling parts
# X Y axis helical rack and gear transmission
# Z axis Taiwan TBI ball screw transmission
# X,Y, Z Taiwan Hiwin 25 square rails
# Taiwan Delta servo motor and driver
# Taiwan Delta inverter
# Auto oil lubrication
# Linear 14 tools automatic changer
# Filter
# Tool calibration
# Heavy duty frame body, 5mm metal tube!!!
# Warm painting, no drop paint
# Mechanical drilling Mechanical tapping, no waste hole
# dust collector
# Limit switch, foot Stepping for level, tools etc.
Option parts:
# Taiwan LNC control system
# Italy 9.0kw HSD ATC air cooling spindle
# Japanese Yaskawa servo motor and driver
# Italy Hiteco drilling parts
# Cutting saw
| No. | Description | TEM1325AF CNC Router | Optional parts of the CNC Router |
| 1 | X,Y,Z Working Area | 1300x2500x200mm (4.3′x8.2′x0.7′) | Other working sizes are optional. |
| 2 | Table Size | 1360x2940mm (4.5′x9.6′) | |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm | |
| 4 | X,Y,Z Repositioning Accuracy | ±0.01 mm | |
| 5 | Table Surface | Vacuum table with 7.5kw vacuum pump | |
| 6 | Frame | Thick,strong and high quality steel tube welded | |
| 7 | X,Y axis driving way | Rack and Pinion /Linear square guide rails and blocks imported from Taiwan, HIWIN brand | |
| 8 | Z axis driving way | Ball screw / Linear square guide rail and blocks imported from Taiwan, HIWIN brand | |
| 9 | Max. Power Consumption | 2.0kw(without spindle) | |
| 10 | Max. Rapid Travel Rate | 60,000mm/min | |
| 11 | Max. Working Speed | 30,000mm/min | |
| 12 | Spindle Power | 9.0KW HQD air cooling spindle | Italy HSD spindle/Drilling units |
| 13 | Spindle Speed | 0-24000 RPM | 0-24000RPM |
| 14 | Drive Motors | Servo System | Yaskawa, Panasonic, Delta or others |
| 15 | Inverter | Delta | Yaskawa, Panasonic, or others |
| 16 | Working Voltage | AC380V/50-60Hz/3PH | AC220V/50-60Hz/Single or 3 phase |
| 17 | Command Language | G Code | |
| 18 | Control system | Taiwan Syntec control system | LNC or others |
| 19 | Computer Interface | USB | PCI |
| 20 | X,Y Resolution | < 0.01mm | |
| 21 | Software Compatibility | Type3/ Ucancame V9 software (Option: Artcam Software) | |
| 22 | Dust collector | 3.0KW with 2 bags | 3KW/4KW |
| 23 | Vacuum pump | 7.5KW, water cooling | Dry cooling |
| 24 | Running Environment Temperature | 0°-45° | |
| 25 | Relative Humidity | 30%-75% | |
| 26 | Packing Size | 3200x2100x1980mm | |
| 27 | N.W. | 2800kg | |
| 28 | G.W. | 3000KG |
1. The Advertising Industry
TEM1325AF has developed a number of comprehensive CNC machining solutions and important productivity options for signmakers. The flexibility of a CNC router allows commercial sign fabricators to produce dimensional signage engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration. Additional productivity options include misters for wood, PVC, MDF, aluminum, aluminum composite panel and other non-ferrous metals.
2. Furniture Industry
Making a cabinetmaker’s job easy. Our CNC routers have made the manufacturing of all kinds of doors(solid wood door, composite door), solid wood furniture, mahogany furniture, MDF paint door, cupboard door and window, bedside cabinet, folding screen etc. countertops, shelves, drawers and drawer fronts available to small, mid-size and large businesses alike. Operating a CNC machine allows cabinetmakers to use a manufacturing technique that improves production time, quality and consistency, as well as material yield, all utilizing a single machine and the right software system. Cabinetmaking involves all types of wood (both natural and processed), and sometimes some plastics as well.
3. Artwork Industry
CNC router can process wooden carft, mural art of wood, artwood, embossed, jeweery, cometics package, musical instrument.
4. Decorate Industry
Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving machine milling process.
CNC HS code: 8465990000
Laser HS code: 8456110090
Oscillating knife cutting machine：8453800000
