X, Y working area:600x1200x200mm
Structure:Whole body cast iron
Movement part:X Y —-2501 ball screw;Z—-1601 ball screw
:X &Y axis: 20 round rails; Z axis:12 round shaft
Motor:450B step motor
Driver:Leadshine M860 driver
Spindle:1.5kw water cooling spindle
Control system:Mach3 control system
Compatible software:Type3/Artcam/UG/pro-E/Mastercam/UcancamV8 etc
Tool bits shank:3.175-6mm

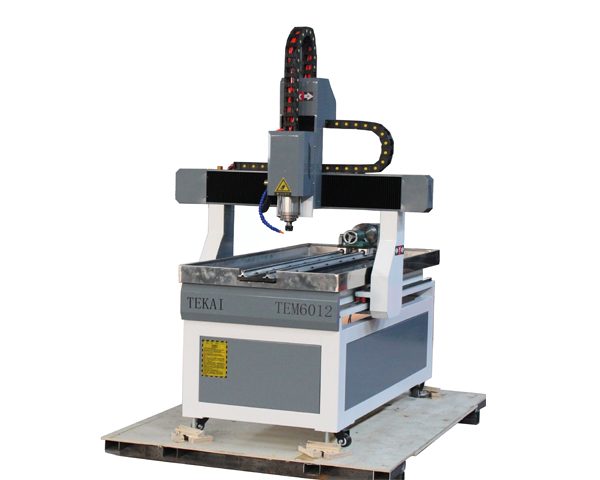

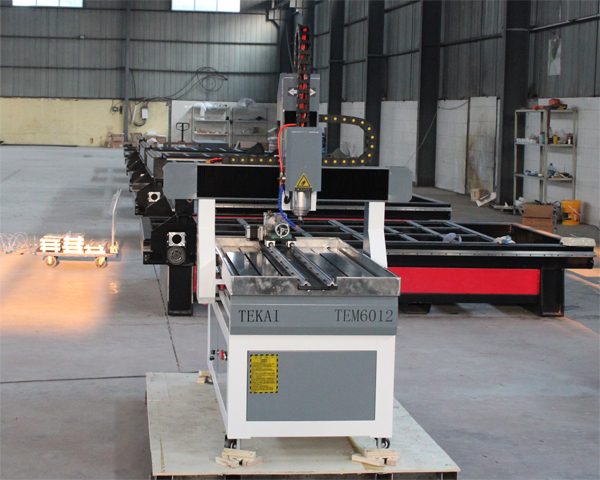

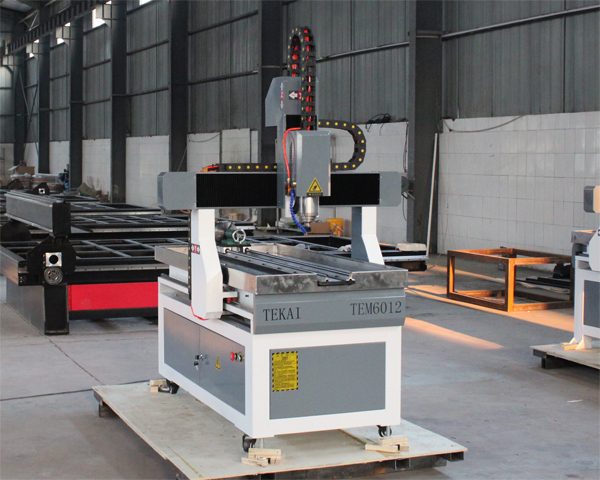

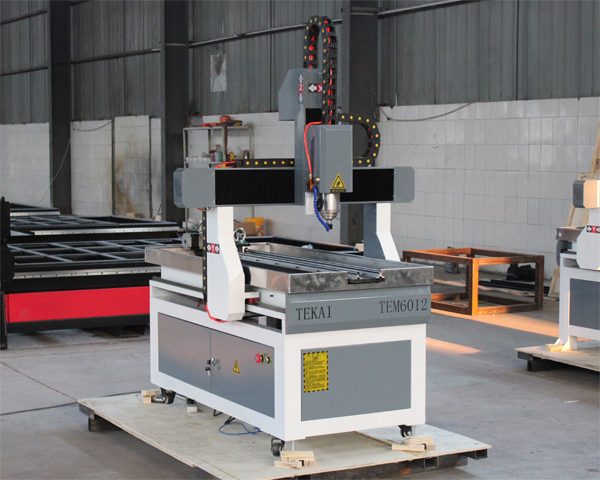

TEM6012 4 axis cnc router 6012 with rotary. 4th rotary for 3d engraving. Installed water tank. It can used for cooling the machine during engraving the aluminum. This machine suitable for customer who need the machine process non metal and metal materials customer. Customer can use it process wood MDF acrylic plastic etc. And they also need to process metal materials. Like aluminum and copper etc. Cast iron structure, working very smooth with cheap price.
1. The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make surethe machine’s stability.
2. Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
3. Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed.Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.
4. Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, long using time.
5. Available for continuous work for a long time.
Mach3 control system via USB port to link. DSP, NC studio control system. According to customer habit to choose.
Stainless steel water tank. It is used for cooling during the machine milling aluminum and copper etc.
Rotary as 4 axis. This parts, it is used for 3d engraving. Some customer need it engraving cylinder material.
Gantry Pillar cast iron. All the gantry is cast iron. Included the Pillar. It can ensure the machine working smooth.
High quality cable. All cable comply with European safety standards. Keep the user is very very safe.
Water cooling spindle. 24000rpm/min. Fast speed, no matter for wood, MDF, aluminum all are enough.
