TEM6090C 4 axis small ATC cnc router for metal milling 6090 6012

Description:Parameter

Model:TEM6090C

X, Y working area:600x900x200mm

Control system:Taiwan LNC ATC control system

Tools:Linear type 6 tools automatic changer

Movement part:X Y —-2501 ball screw;Z—-1601 ball screw

:X &Y axis: 20 round rails;   Z axis:12 round shaft

Motor:Leadshine HSB758 servo motor

Driver:Leadshine HSB758 servo driver

Spindle:3.2kw water cooling spindle

Working speed:0-8000mm/min

Feeding:200mm

Command code:G-code

Working precision:0.03mm

Repeatability:0.01mm


Product DetailProduct Detail

circleConfiguration

circleApplication

circleHS Code

1628836124840767

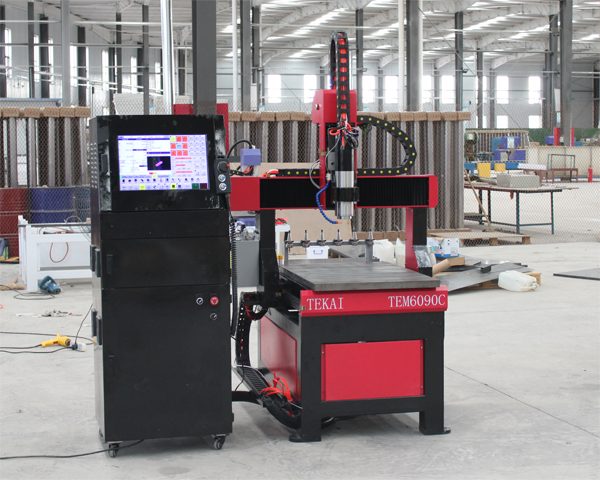

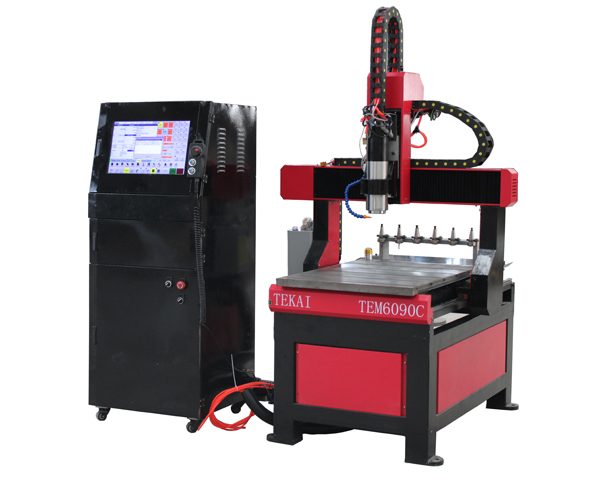

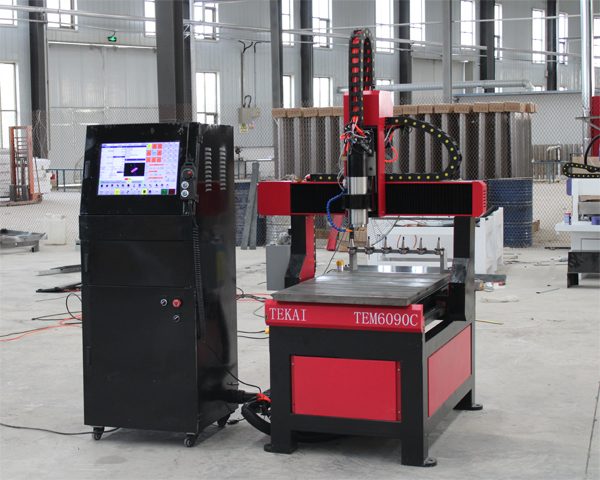

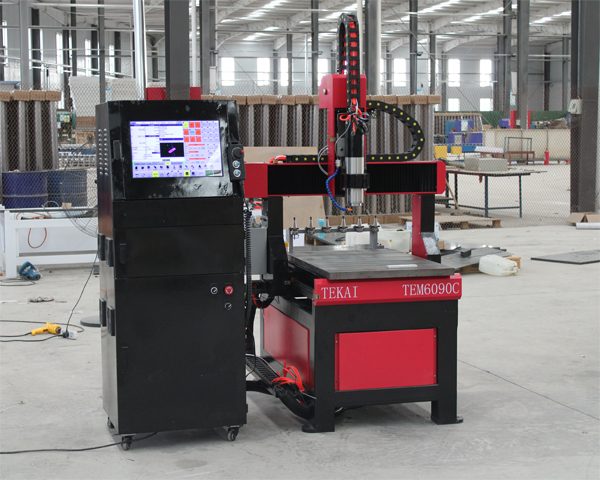

TEM6090C small ATC cnc router 6090 6012. Some customer, no matter big cnc or small one. They always want the machine with ATC system. TEM6090C is professional designed for the customer who like ATC cnc machine. Most professional ATC control system with 6 tools automatic changer. Servo motor and driver moving the machine with enclosed system. No lose step, higher working precision. Fast speed, cutting and engraving Wood, MDF, Plastic, Aluminum metal and non-metal materials.

Feature of the machine

1. The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.
2. Taiwan LNC control system, the most professioal and stable ATC control system
3. Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
4. Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.
5. Adopt ATC spindle, high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.

6. Available for continuous work for a long time.

01
dian

Taiwan LNC control system with full touch screen. The most ATC control system for 6 tools automatic changer.

6 tools automatic changer. Linear type automatic changing.

tai
02
03
dian

Oil mist cooling system. It is used for cooling the tools during the machine cutting and engraving metal. It is the most professional cooling system.

3.2kw ATC water cooling spindle. 24000rpm/min. Fast speed milling the materials.

tai
04
05
dian

Oil auto lubracation. It will maintain the Hiwin 20mm square rails and Taiwan TBI Ball screw.

Leadshine HBS758 Hybrid servo motor and driver. Enclosed system, no lose step. Keep the machine working smooth and high precision.

tai
06

Description

Parameter

Model

TEM6090C

X, Y working area

600x900x200mm

Control system

Taiwan LNC ATC control system

Tools

Linear type 6 tools automatic changer

Movement part

X Y —-2501 ball screw;Z—-1601 ball screw

X &Y axis: 20 round rails;   Z axis:12 round shaft

Motor

Leadshine HSB758 servo motor

Driver

Leadshine HSB758 servo driver

Spindle

3.2kw water cooling spindle

Working speed

0-8000mm/min

Feeding

200mm

Command code

G-code

Working precision

0.03mm

Repeatability

0.01mm

Compatible software

Type3/Artcam/UG/pro-E/Mastercam/UcancamV8 etc

Tool bits shank

3.175-12mm

1. Advertising indusries: logo design,advertisng board, DIY, plastic, acrylic cutting, etc.

2. Decoration industries: wave boards, sign making, decorations, etc.

3. Arts & Crafts industries: engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.

4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, organic glass, plastics and soft metal sheets such as copper and aluminum.

IMG_0877 IMG_5889 IMG06 IMG09

CNC HS code: 8465990000

Laser HS code: 8456110090

Oscillating knife cutting machine:8453800000
