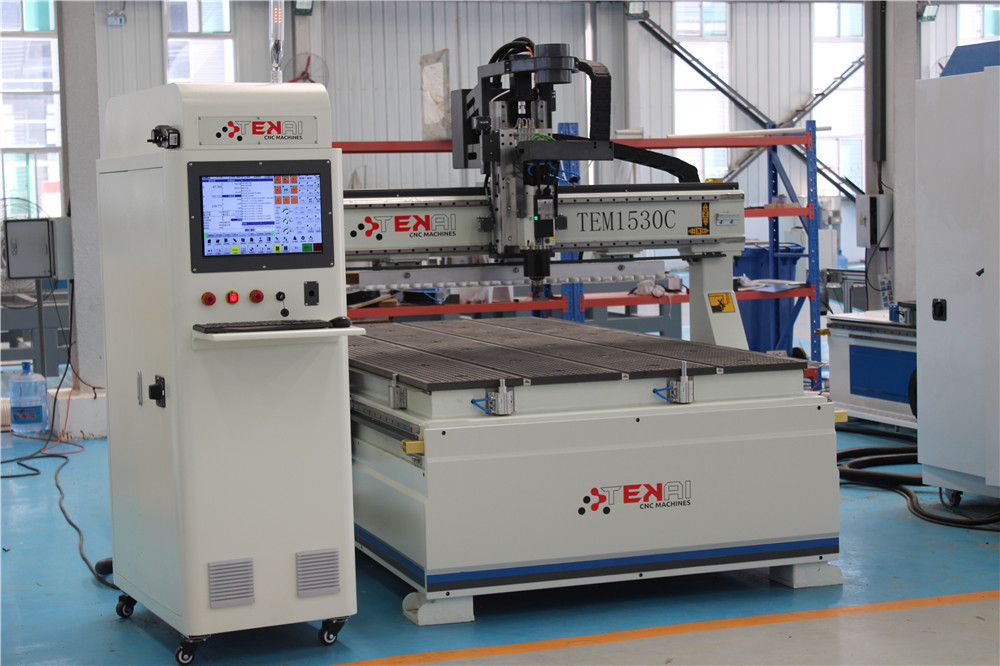

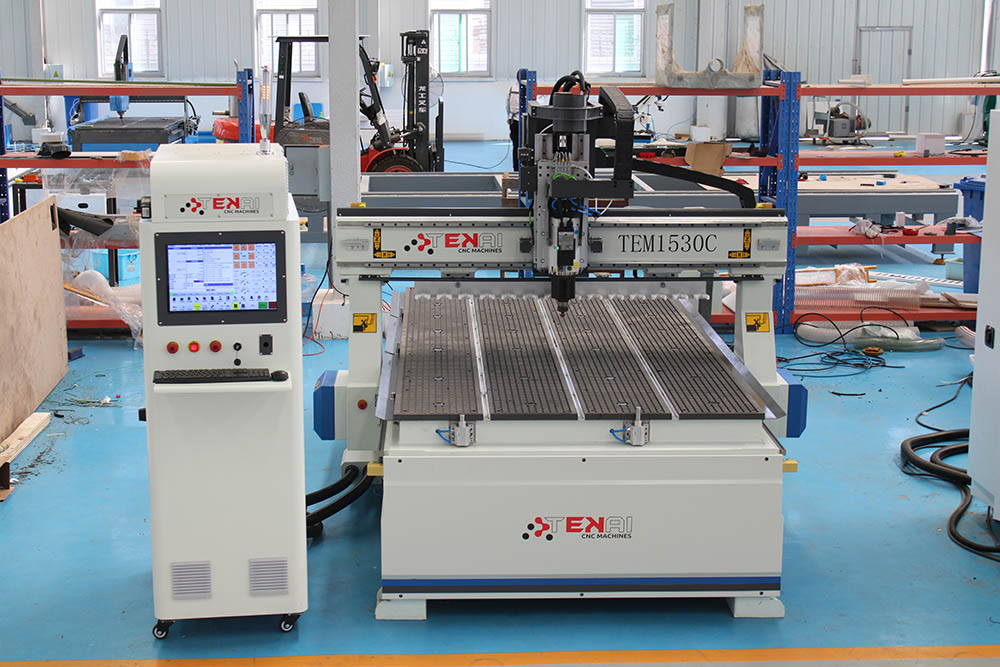

TEM1530C 9.0kw HQD ATC mhepo inotonhorera spindle cnc muchina wemapuranga fenicha yemapuranga gonhi kuveza 1500x3000mm ndiro yekucheka muchina une 24000rpm.

Muenzaniso:TEM1530C

Kushanda nzvimbo: 1500 * 3000 * 200mm (inogona customized)

Kushanda Voltage: 380V, 3PHASE, 50HZ (inogona kugadzirwa)

Kudzora System: Taiwan LNC control system

Spindle: 9.0kw HQD ATC mhepo inotonhorera spindle

Spindle speed:24000rpm/min

Magazini yekushandisa:Mutsara wemhando + 14pcs ISO30 zvibatiso zvekushandisa

Motokari uye Mutyairi:Taiwan Delta servo motors uye vatyairi

Inverter:11kw Taiwan DELTA inverter VFD

Chimiro: Rudzi rutsva rwakakora uye hombe inorema basa welded furemu uye gantry

Tafura yepamusoro: T-slot uye Vacuum Inoshanda Tafura ine 4 Zone

Gantry chimiro: Gantry Inofamba

Lubrication system:Automatic lubrication system

Calibration:Otomatiki chishandiso sensor calibration


Product DetailProduct Detail

denderedzwaConfiguration

denderedzwaApplication

denderedzwaHS Code

2

5x10 Linear ATC woodworking cnc router 1530C.Nzvimbo yakakura yekushanda kupfuura TEM1325C.Inogona kugadzira zvinhu zvakakura saizi.Inoshandiswa zvakanyanya kugadzirwa kwegonhi rekabati, gonhi rakasimba remapuranga, tafura yekombuta, kuunganidza fenicha nenzvimbo huru uye misa yakavezwa paMDF neHDF, bhodhi rehuni, kucheka ndege, 3D embossment zvichingodaro.Gore idzva idzva ATC cnc router 1530 ine mutengo unodhura iri kutengeswa.

Zvinhu zveTEM1530C:

1.Automatic 5x10 cnc router machine, Z axis inotora kunze kwenyika yakanyatsojeka Taiwan TBI Ball screw ine kufamba kwakatsetseka.Kushanda nemazvo kwakawedzera zvakanyanya.

2.Heavy duty frame body.Kuburikidza nekuongorora kwakasimba kwesimba uye dhizaini yemagadzirirwo esainzi.Ita kuti muchina ushande tafura, yakagadziridzwa kusagadzikana kusagadzikana.Kunyangwe kuburikidza nemakore mazhinji, zvakadaro hapana deformation.

3.14 zvishandiso otomatiki shanduko.Iyo 5x10 ATC cnc router muchina inotora Linear 14 maturusi otomatiki shanduko mhando.Shandura chishandiso chimwe, chinongoda 8 sekondi.Iyo inoshanda yakanyanya kukwirira.

4.HQD 9.0kw ATC air cooling spindle, nekuda kwekutonhodzwa kwemhepo, hapana chikonzero chekugadzirisa nguva dzose semvura inotonhorera.24000rpm/min.Iyo inotenderera inomhanya, inogona kukuya pamusoro pehuni yakanyanya kutsetseka.

5.Yese yedu ATC cnc router machine, yaisanganisira 5x10 cnc router machine, isu tose ticharayira mutengi kusarudza Shimp reducer.Inogona kuderedza inertia yemuchina panguva yekumhanya-mhanya.Dzivisa panguva yeATC cnc router muchina unoshanda nekukasira, saka, pesvedzera iyo ATC cnc rouer muchina unoshanda nemazvo.

6.The bearing, Taiwan TBI Ball screw uye Hiwin square rails.Munguva yemuchina unoshanda, pasi pekutonga kweTaiwan LNC control system, ivo vanozochengetwa kazhinji neauto mafuta lubrcation system.

7.Break point memory.Kana muchina kushanda nguva kudzima kamwe kamwe, mushure muchina simba rekupa zvakare.Iyo machie ichatanga kushanda kubva panzvimbo yakamira kuti ienderere mberi nekugadzirisa.

8.I 5x10 ATC cnc router machine inonyatsoenderana.Chete dhizaini software inogona kuburitsa iyo G kodhi.Vose vanogona kushanda ne5x10 ATC cnc router 1530. Zvakadai seType3/Artcam/Castmate/CAD/CAM etc.

01
dian

Taiwan LNC control system ine yakazara yekubata sikirini.Iyo yakanyanya hunyanzvi ATC control system.

HQD 9.0kw ATC mhepo inotonhorera spindle.24000rpm/min.Kukurumidza kumhanya, Maintenance-isina.

tai
02
03
dian

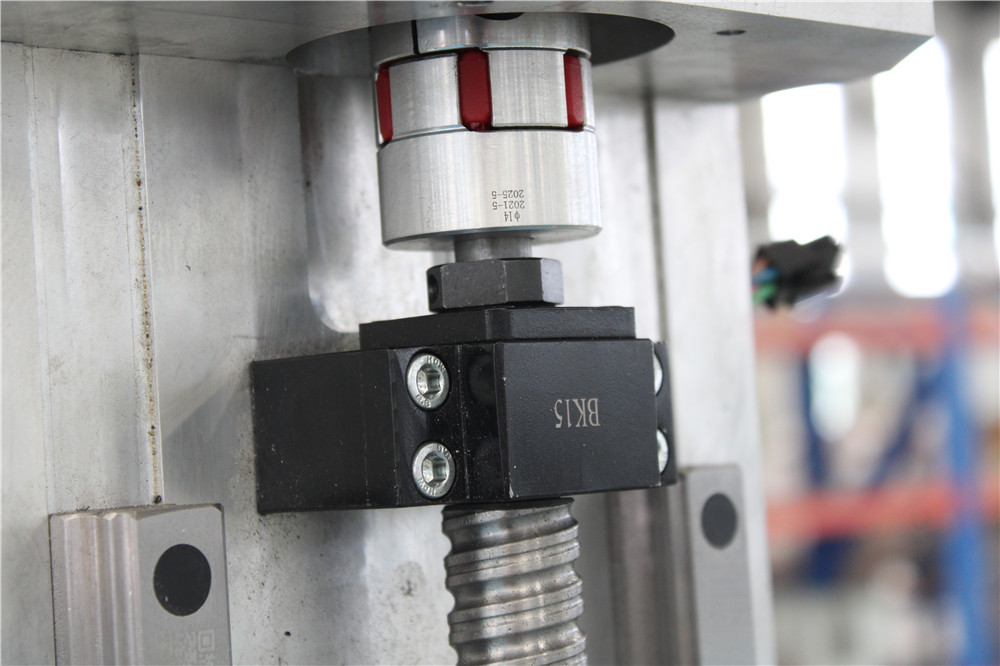

High quality BK level Bearing seat.

Kiya pachigaro chine fani.

tai
04
05
dian

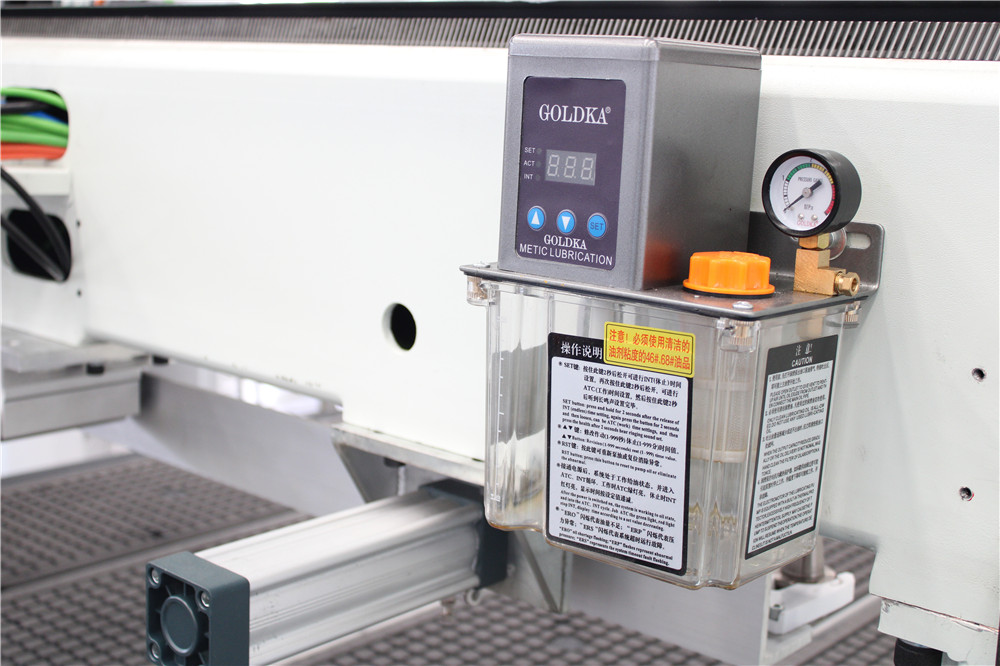

Auto mafuta lubracation.Via system control, chengetedza iyo Gear, TBI Ball screw uye Hiwin square rails.

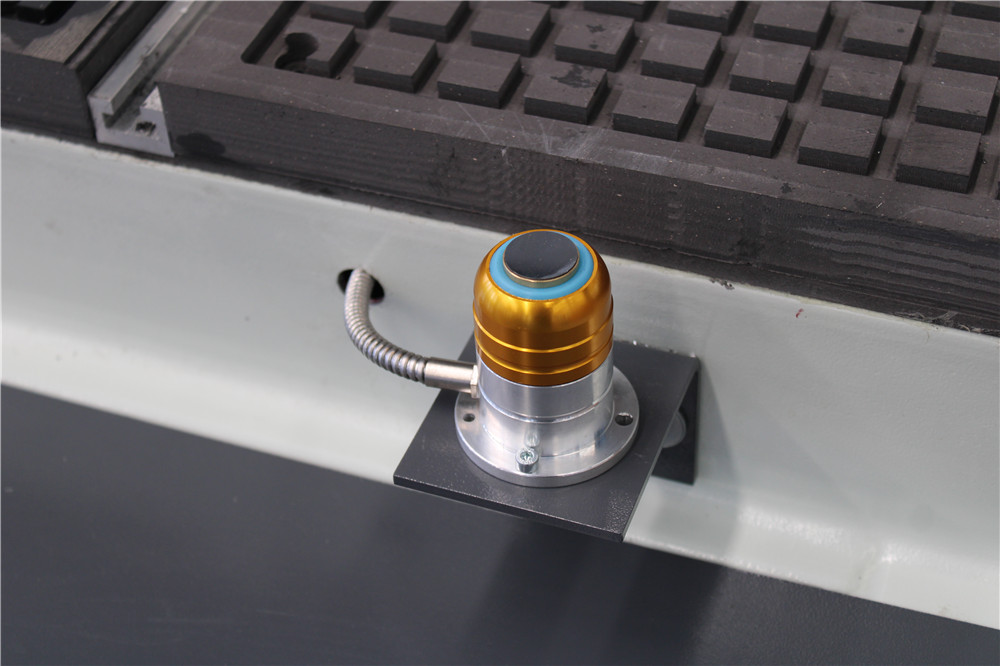

Auto tool sensor, batsira gumi nemana maturusi otomatiki chinzvimbo.

tai
06
07
dian

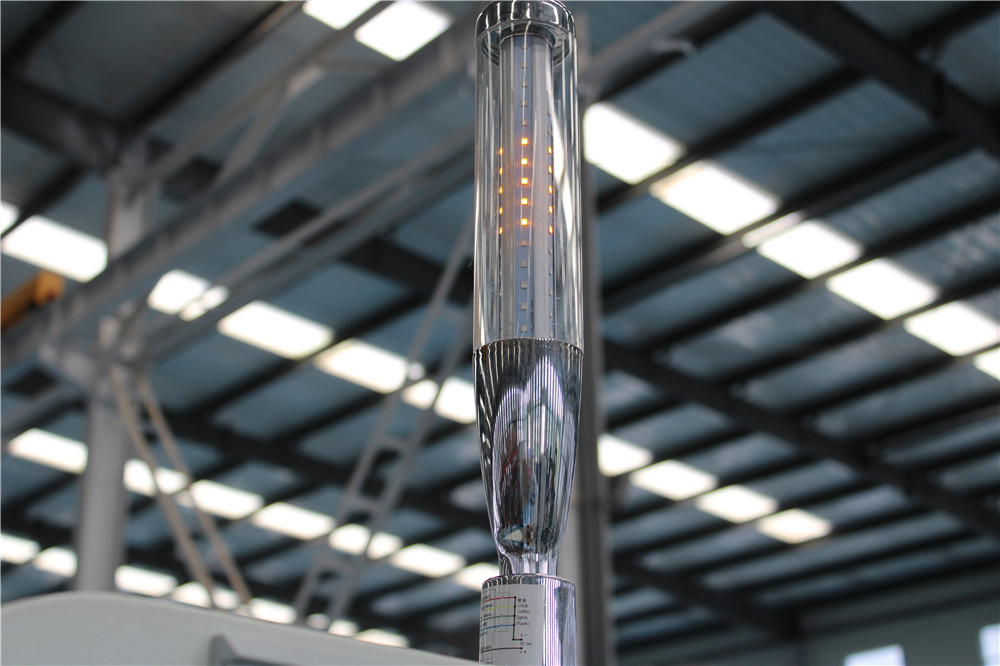

Chiedza chechiratidzo, Ratidza mamiriro ekushanda emuchina pamatanho akasiyana.

Giya kudzivirira.Munguva yemuchina unoshanda, ichadzivirira iyo Gear yakachena.

tai
08
Tsanangudzo Parameters
Modle TEM1530C
Nzvimbo yekushanda 1500 * 3000 * 200mm (inogona customized)
Kushanda Voltage 380V, 3PHASE, 50HZ (inogona kugadzirwa)
Kudzora System Taiwan LNC control system
Spindle 9.0kw HQD ATC mhepo inotonhorera spindle
Spindle speed 24000rpm/min
Tool magazine Linear mhando + 14pcs ISO30 tool holders
Motokari uye Mutyairi Taiwan Delta servo mota uye vatyairi
Inverter 11kw Taiwan DELTA inverter VFD
Chimiro Nyowani mhando yakakora uye hombe inorema duty welded furemu uye gantry
Tafura pamusoro T-slot uye Vacuum Inoshanda Tafura ine 4 Zone
Gantry chimiro Gantry Moving
Lubrication system Automatic lubrication system
Calibration Otomatiki chishandiso sensor calibration

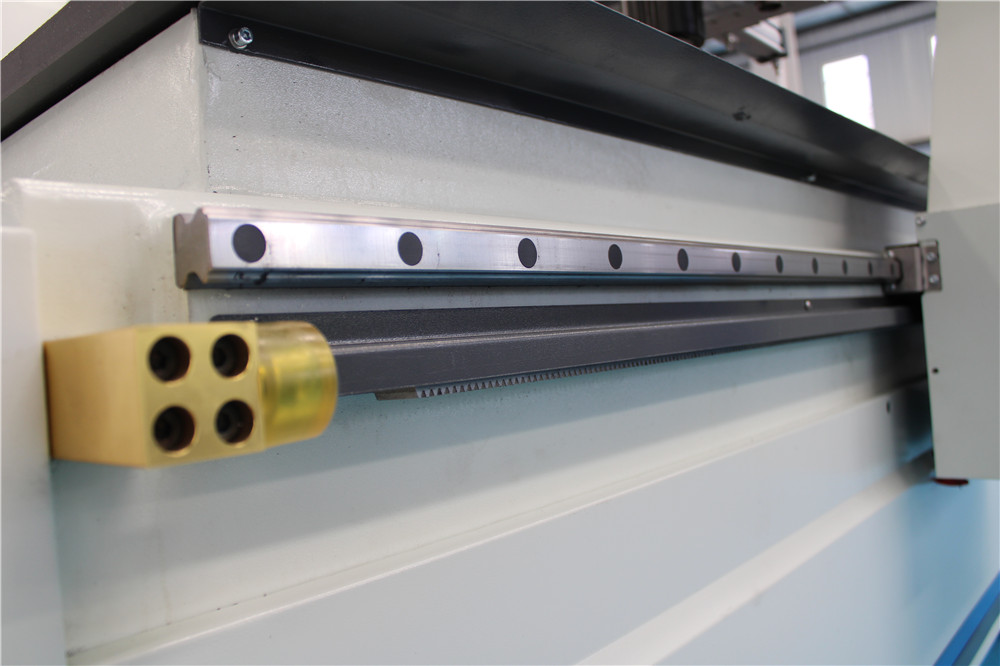

Transmission X,Y Axis: Helical rack, Taiwan Hiwin/PMI 25# Rail Linear Inotakura neguruva hood inodzivirira yeY axis.Z Axis: Taiwan Hiwin/PMI Rail 25# Linear Bearing & Taiwan TBI Ball Screw
Vacuum pombi 7.5kw Vacuum Pombi (380V, 3PHASE, 50HZ)
Dust Collector 3.0kw kaviri homwe guruva muunganidzi (380V, 3PHASE, 50HZ)
Mutauro wekuraira G Kodhi
Applications Huni, MDF, PVC, Acrylic, Carboard, Rubber, Foam.

# Fenicha: magonhi emapuranga, makabati, ndiro, hofisi uye fenicha yehuni, matafura, chigaro, magonhi nemahwindo.

# Zvigadzirwa zvehuni: bhokisi rezwi, makabati emitambo, matafura emakombuta, tafura yemichina yekusonesa, zviridzwa.

# Kugadziriswa kwendiro: chikamu chekuisa, epurasitiki makemikari zvikamu, PCB, muviri wemukati wemota, Bowling tracks, masitepisi, anti-Bate board, epoxy resin,

ABS, PP, PE uye mamwe kabhoni akasanganiswa makomisheni.

# Kushongedza indasitiri: Acrylic, PVC, MDF, dombo rekugadzira, organic girazi, mapurasitiki uye simbi dzakapfava semhangura, aluminium ndiro yakavezwa uye

nzira yekugaya.

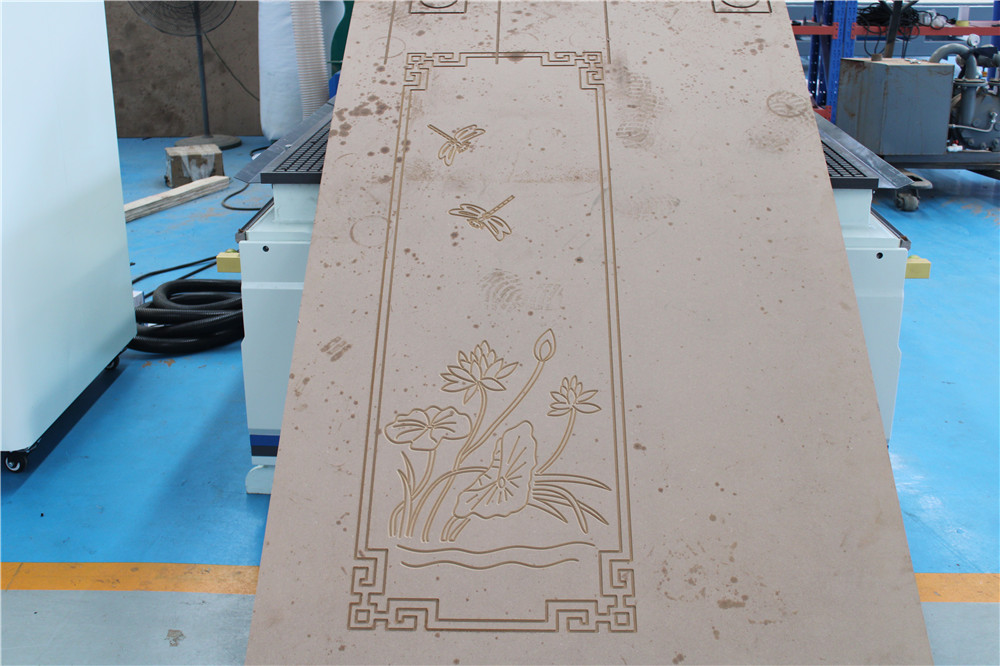

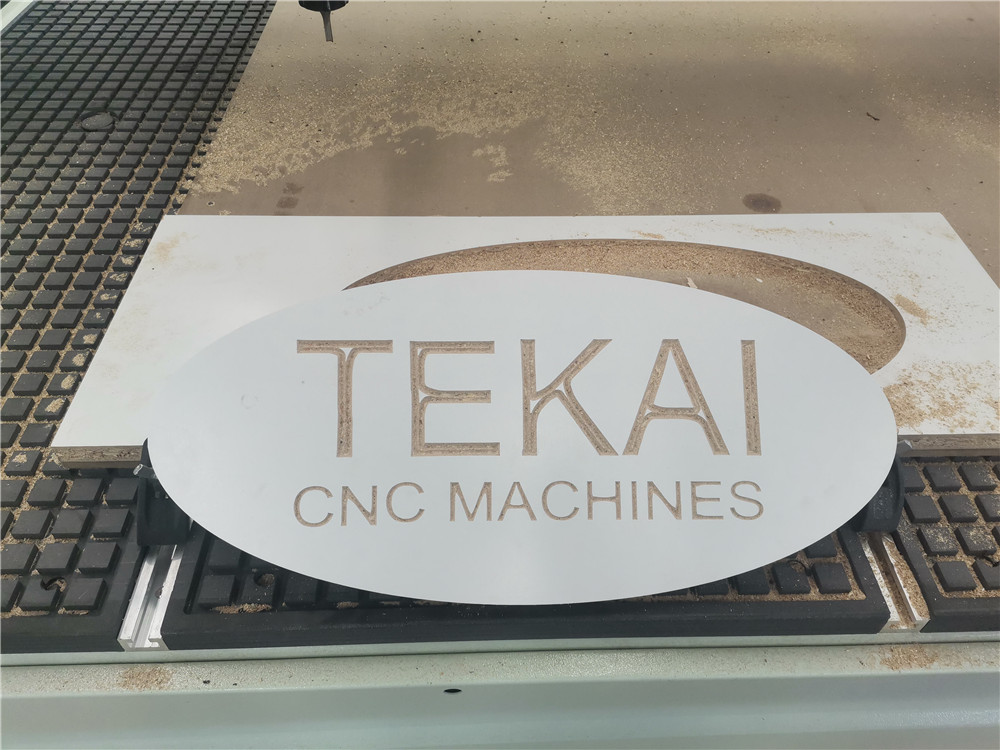

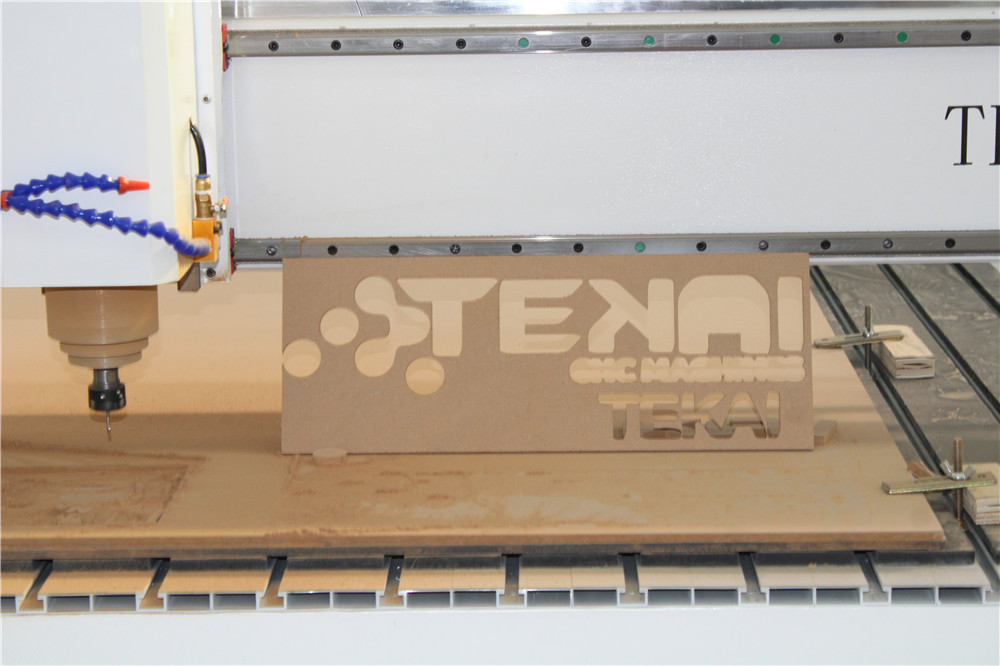

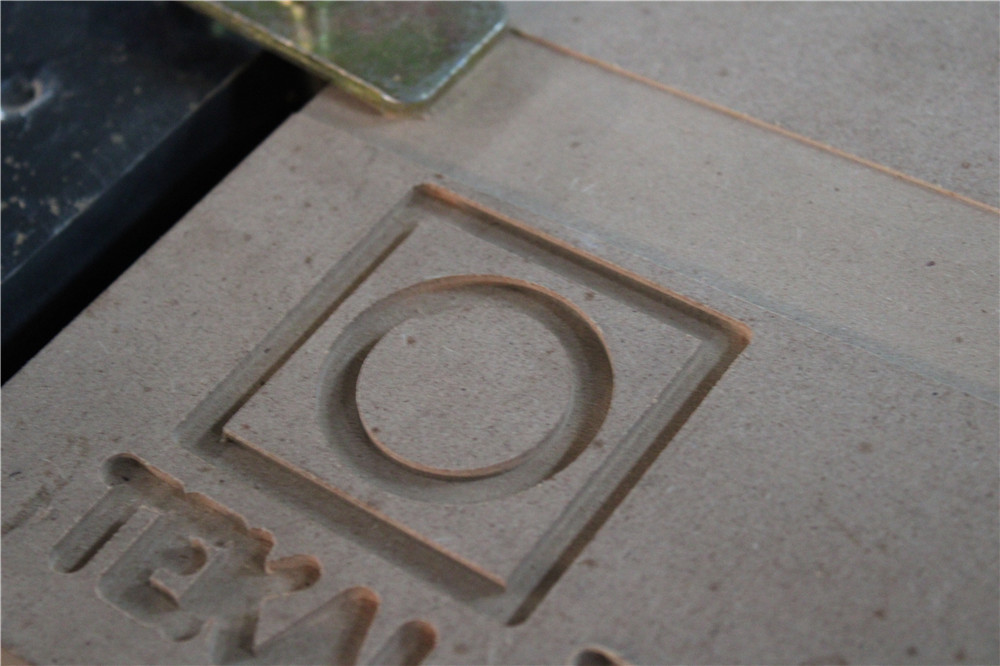

IMG_1884 IMG_5116 IMG_6816 IMG_20210426_152457

CNC HS kodhi: 8465990000

Laser HS kodhi: 8456110090

Oscillating banga rekucheka muchina:8453800000
