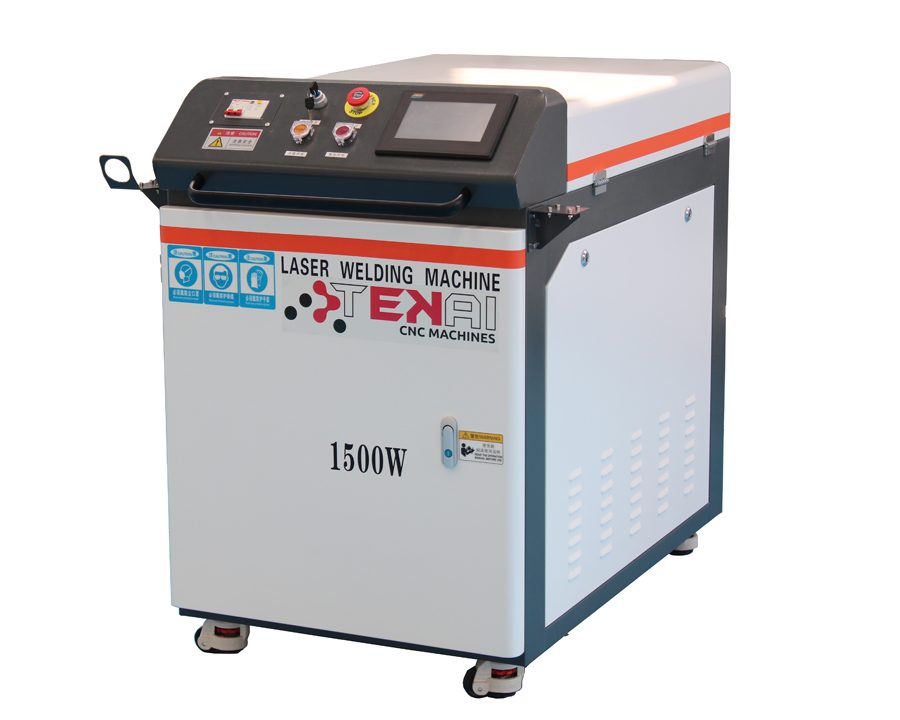

Tekai 1000w 1500w fiber laser welding machine for metal and SS CS with handheld

Control system: Qilin or WSX control sytem

Laser wavelength: 1070NM

Cable Length: 10M

Fiber resource: Racuys, JPT etc

Welding thickness: 0.5~8mm

Power: 1000w, 1500w, 2000w

Operating temperature: 0~35 degree

Working Voltage: 380V, 50HZ/60HZ

Certification: CE

Weight: 300KG

Cooling Mode: water cooling

Product DetailProduct Detail




circleHS Code


Fiber is an important industrial revolution in the 21st century, and the application of fiber to all aspects of industry. For the welding industry, fiber laser welding machines are undoubtedly the most fashionable applications at the moment. Compared with traditional welding technology, fiber laser welding machine is favored by customers all over the world because of its safety, easy operation, long service life, no need for frequent maintenance, and small and flexible features. If you are engaged in the kitchen and bathroom industry, home appliance industry, advertising industry, mold industry, stainless steel product industry, stainless steel engineering industry, door and window industry, auto parts industry, etc. Fiber laser cutting machine is a very good choice. Especially for outdoor welding requirements are more. The machine is small, flexible and easy to move, which is very suitable for the welding needs of outdoor workers anytime, anywhere. And the price is reasonable and the quality is reliable.


1. For the fiber laser welding machine, the first feature is easy to operate, and welding without deformation compare with the traditional welding. No need too complicated manual operation. Save Labour cost.

2. Stable output, ensure the welding effect is perfect. And save time.

3. 360 degree without dead angle micro soldering
After the laser beam is focused, a small spot can be obtained, which can be accurately positioned and used in the group welding of micro and small size workpieces for mass production. mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stack welding, sealing welding, etc., high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.

4. Long life working, safer and more environmentally friendly. Laser welding is with low consumables for micro soldering.

5.The laser cleaning system is stable and requires almost no maintenance

6. Precise cleaning, can achieve selective cleaning of precise position and precise size. And high power density after laser focusing.

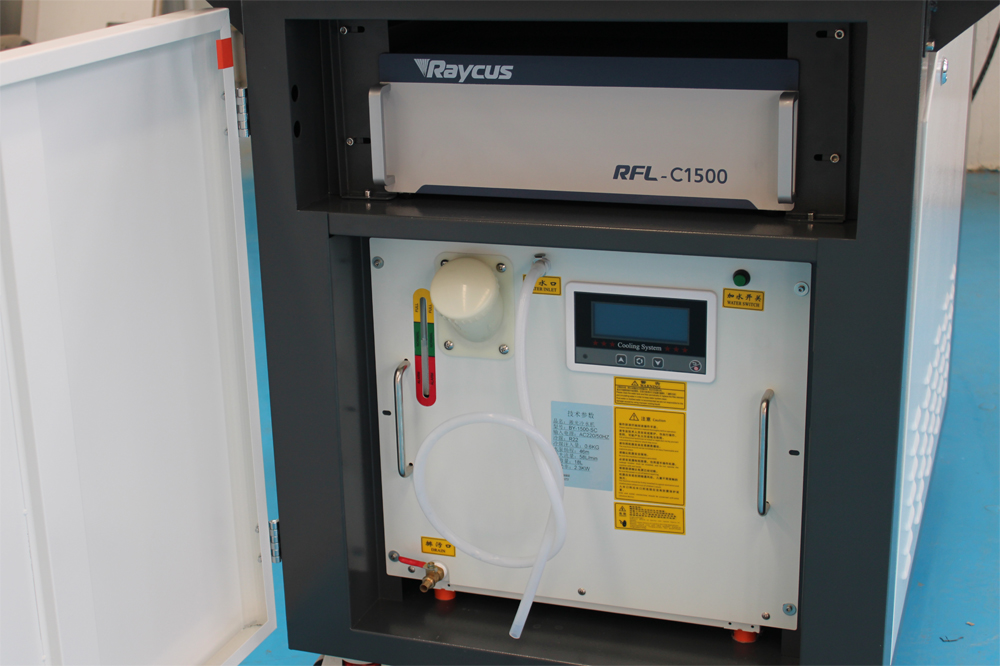

Detailed parts 01

Racuys laser recourse, China best brand. You also can choose JPT etc. Stable output and great after service for all over the world.

The newest design from Tekai cnc company.

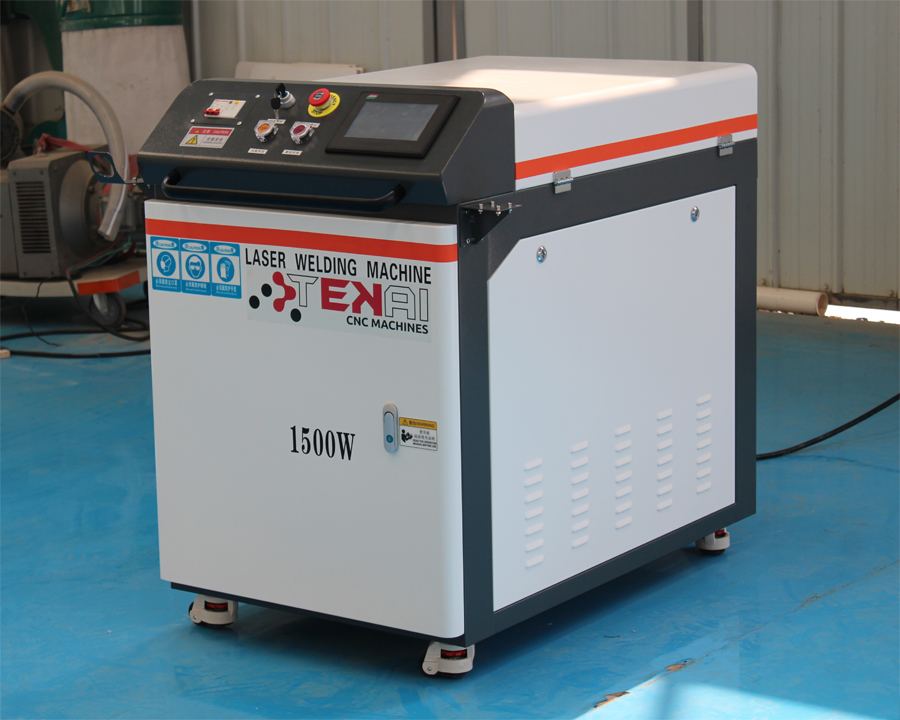

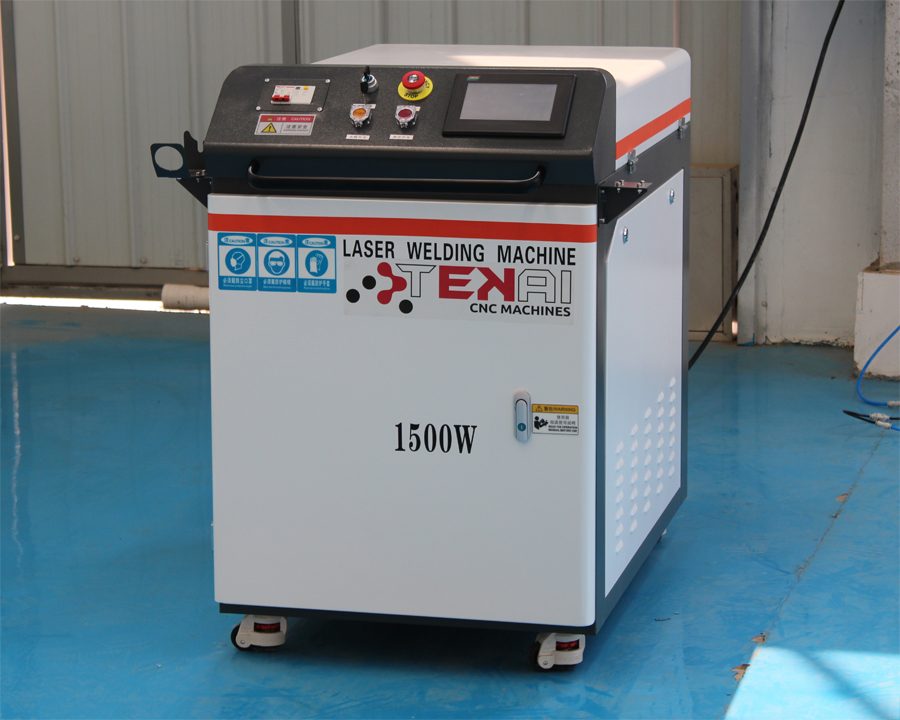

Fiber laser welding machine 04
Detailed parts 02

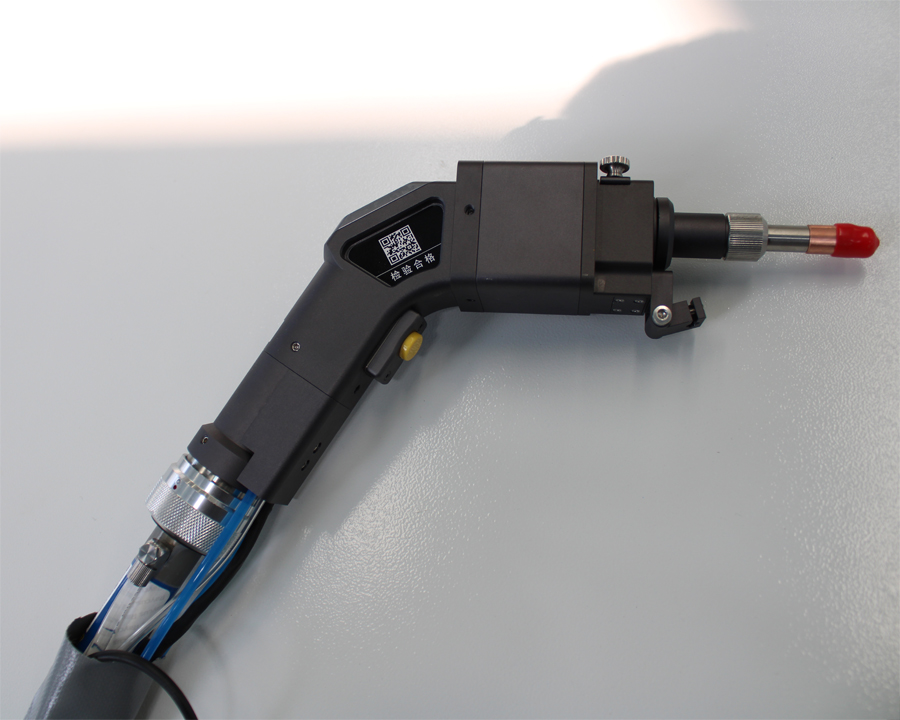

Qilin Welding Gun. strong and durable.

WSX control system. Stable and easy to learn.

Detailed parts 03
Ddetailed parts 04

Inernal Industrial Chiller. The optical fiber generator can be cooled at any time, so that the machine can work for a long time and prolong the service life of the machine.

10m welding cable, Welding is more convenient and flexible.

Detailed parts 05
Detailed parts 06

High quality press button. Ensure durable and the operater safe during the machine start to working.

Iron pliers. It is the welding machine that forms a circuit with the welding material to ensure the welding effect.

Detailed parts 07


Machine model                                                      Hand held fiber laser welding machine
Laser source Raycus/JPT
Laser power 1000w/1500w/2000w
Laser wave length 1070NM
Uptime 24 hours
operate mode continuation/ modulate
Welding speed range 0~120 mm/s
Laser pulse width 0.1-20ms
Cooling chiller Industrial water chiller
Working environment temperature range 15~35 ℃
Humidity range of working environment < 70% No condensation
Welding thickness recommendations 0.5-3mm
Welding gap requirements ≤0.5mm
Working voltage 380 V
Dimensions 1140*670*1400 mm
Weight 300KG

The newest fiber laser welding machine, widely used for different working demands. Long distance and large workpieces with small space for working. Small welding contact area will not cause the materials deformation, blackening, and traces on the back. More importantly, the welding depth is large, the Welding gap is very firm, and melting is sufficient. There is no sag phenomenon when the convex part of molten material in the molten pool converges with the substrate.

Application matewrials:

Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper – brass, titanium – molybdenum, titanium – gold, nickel – copper and so on.

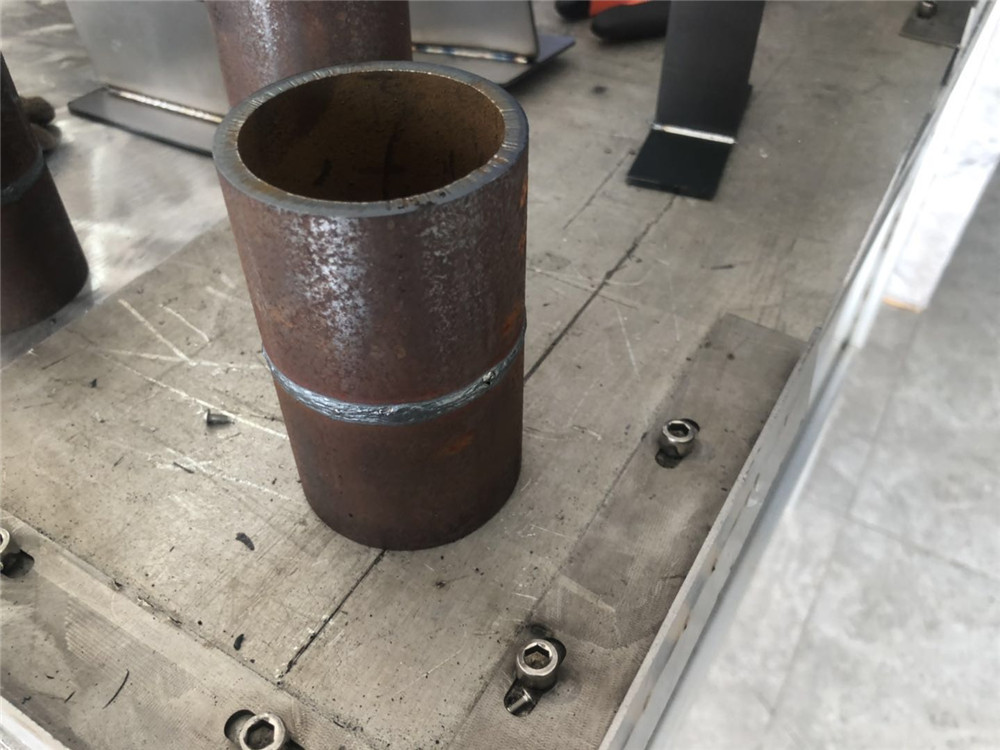

Samples 01

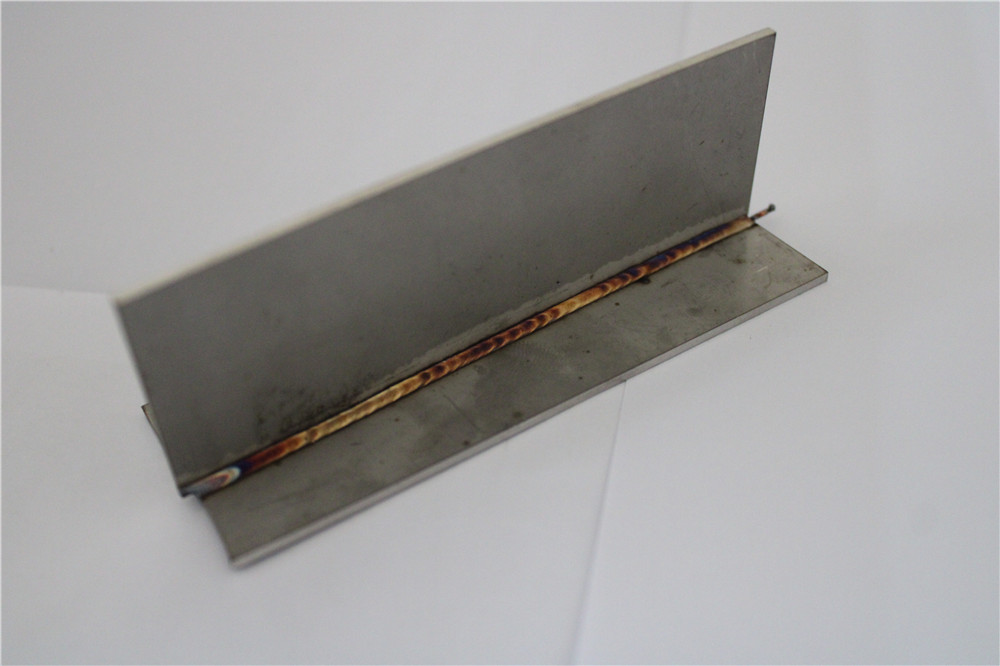

Samples 02

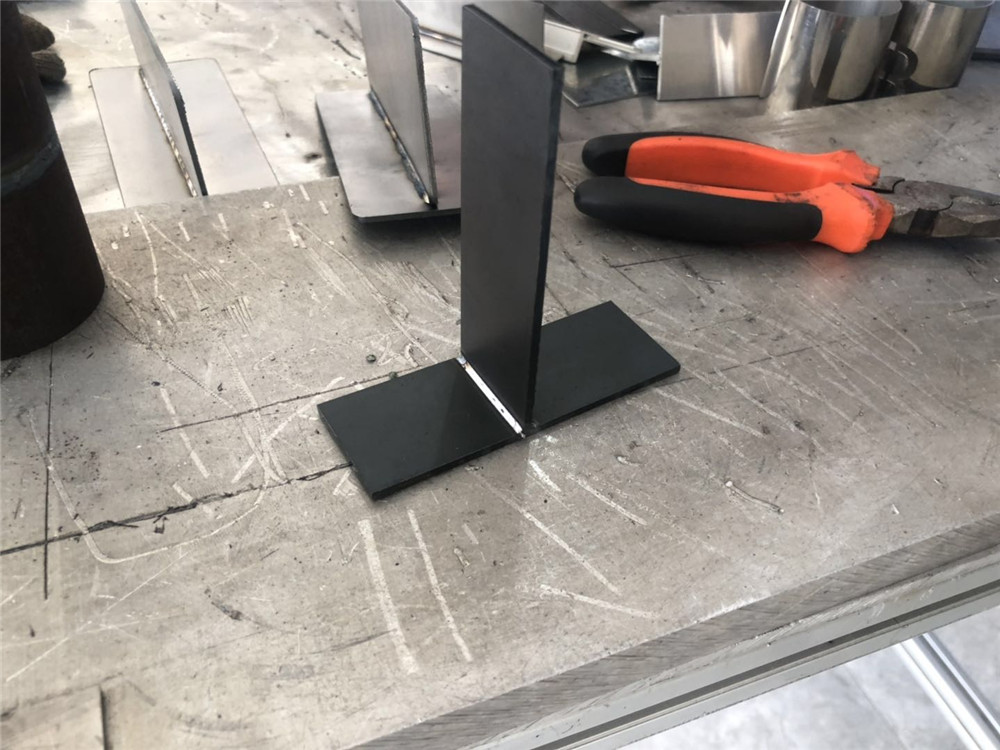

Samples 03

CNC HS code: 8465990000

Laser HS code: 8456110090
