Structure:Cast iron body
Moving style:Table moving, gantry fixed
Spindle:1.5kw water cooling spindle
Driver:Leadshine M860 driver
Transmission:X Y Z axis Taiwan TBI ball screw
Max traveling speed:8000mm/min
Max working speed:6000mm/min
Command language:G code
Interface:USB port or network cable port
The key to our success is “Good Product Quality, Reasonable Value and Efficient Service” for 2019 wholesale price China Factory Price Latest Design Mini Tiller, We’ve been looking forward to cooperating with all clients from in the home and overseas. Moreover, customer fulfillment is our eternal pursuit.
The key to our success is “Good Product Quality, Reasonable Value and Efficient Service” for China Tiller, Mini Tiller, Our company now has many department, and there have more than 20 employees in our company. We set up sales shop, show room, and product warehouse. In the meantime, we registered our own brand. We have tightened inspection for quality of product.

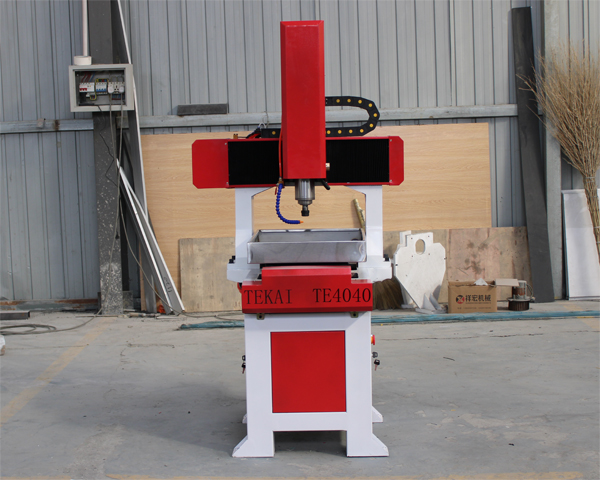

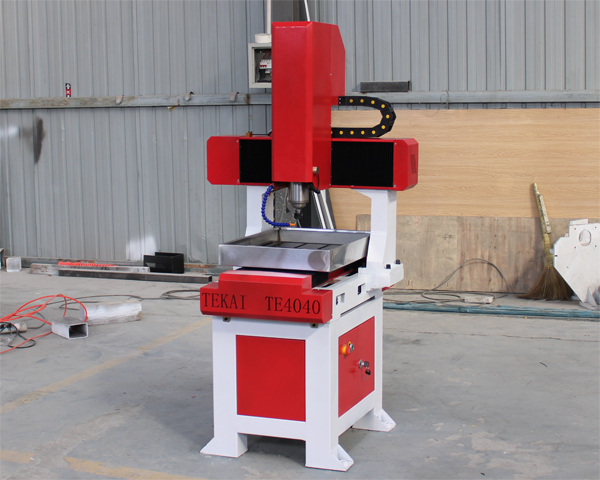

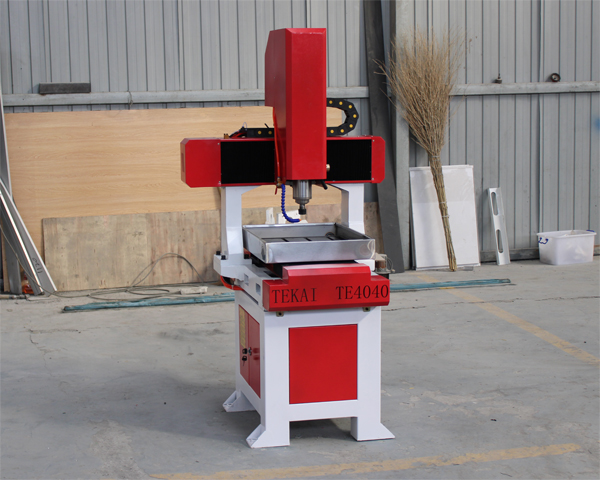

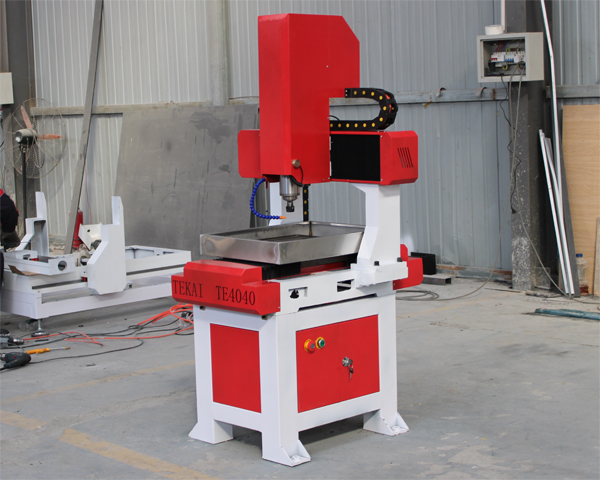

TE4040 3 axis CNC mould making machine is a full cast iron body with high stability and durability. It is professional for soft metal engraving, cutting, drilling and milling, mainly used small parts metal processing.
The bed, column, table, and gantry are cast iron structural parts. High temperature annealing before processing, after semi-finishing, two annealing to eliminate stress, and then finishing, can ensure the stability of machine’s accuracy.
No control box, the main parts are inside the machine, it can greatly save space. Dust-proof design, perfect to keep the inside of the machine clean.
X, Y, Z axis adopts Taiwan TBI ball screw transmission, ensure the accuracy of the machine. Imported Taiwan HIWIN 20mm square rails, improve accuracy. What’s more, the working method is table moving, gantry fixed, which make the accuracy of machine more high. In a word, this is a high precision CNC machine.
The machine adopts Mach3 control system, connect to computer via USB port or network cable port, the programming is simple and the operation is convenient. Artcam design software, well compatibility, compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug. etc.
The machine adopts a high-speed water-cooled spindle with constant power, large torque, strong cutting force, high frequency and long life. And equipped with water tank for cooling the spindle and protect it. When processing metal, can work for a long time.
TE4040 3 axis CNC mould making machine is suitable for processing high-precision mould. It can carve cut drill and mill various materials such as aluminium, copper, soft steel, wood, plastic, etc.
Changsheng 1.5kw water cooling spindle, a well-known brand in China. The rotating speed is 0-24000rpm/min, with good stability and high cost performance.
Oil lubrication, there are two kinds of automatic and manual. Make the machine run smoothly and improve accuracy.
Flashlight, help you work normally at night.
T-slot table, full cast iron, very strong and stable.
Leadshine M860 driver, 6N/S, low price, high performance.
Fuling inverter, driven by the spindle motor of the engraving machine, make it runs smoothly and the speed changes smoothly.
The key to our success is “Good Product Quality, Reasonable Value and Efficient Service” for 2019 wholesale price China Xiuniu Factory Price Latest Design Mini Tiller, We’ve been looking forward to cooperating with all clients from in the home and overseas. Moreover, customer fulfillment is our eternal pursuit.
2019 wholesale price China Tiller, Mini Tiller, Our company now has many department, and there have more than 20 employees in our company. We set up sales shop, show room, and product warehouse. In the meantime, we registered our own brand. We have tightened inspection for quality of product.
# Working area: 400*400*200mm
# Cast iron body
# Mach3 control system
# 1.5kw water cooling spindle
# Nema 34 step motor and Leadshine M860 driver
# Taiwan HIWIN 20mm square rails
# X, Y, Z 20mm Taiwan TBI ball screw transmission
# Fuling inverter
# Y axis high precision table moving
# T slot steel cast iron table
# Tool box
# Plywood box package
# foot panel for adjust the level
# professional tools for aluminum
# Artcam for design
# water cooling system
|Cast iron body
|Table moving, gantry fixed
|1.5kw water cooling spindle
|Leadshine M860 driver
|X Y Z axis Taiwan TBI ball screw
|Max traveling speed
|Max working speed
|USB port or network cable port
|Taiwan Hiwin 20mm square rails
1. Mainly for engraving and milling molds, eyeglasses, watch, badge, brand, graphics and words of threedimensional and outside surface’s sleeking of large size.
2. Professional designed for soft metal materials such as aluminium copper, etc.
3. It can widely apply to automotive, injection mould, ironware mould and engrave mould industries.
CNC HS code: 8465990000 Laser HS code: 8456110090 Oscillating knife cutting machine：8453800000
