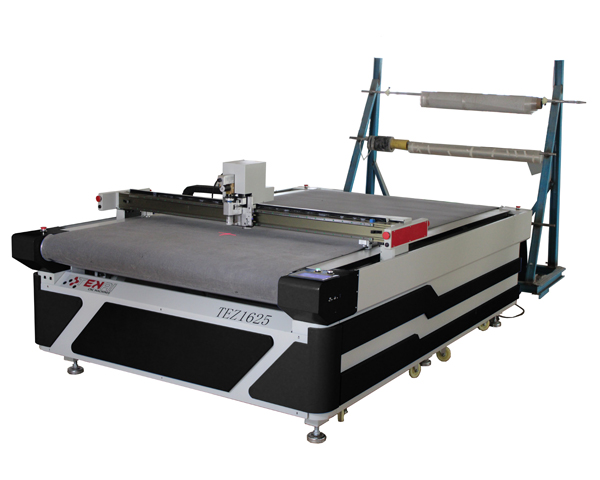

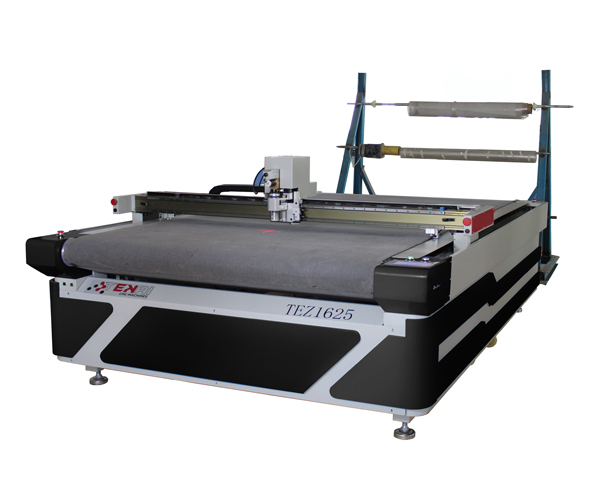

Cheapest Factory Multifunctional Digital Oscillating Knife Cutter Machine for Cutting and Grooving Pet Acoustic Panels

Model: TEZ1625

Brand:Tekai cnc

Working area: 1600x2500mm

CNC or not: CNC

Original: CN(Origin)
Delivery Time: 20-25 working Days

Certificatres: CE, FDA, ISO

Customized: Accept

Voltage: AC 220V/380V, 1P/3P, 50HZ/60HZ

Supply Ability: 90 Sets/Month

Packing size: 3600*2260*1320mm

Payment Terms: T/T(Telegraphic Transfer), Mastercard, e-Checking


Product DetailProduct Detail

circleConfiguration

circleApplication

circleHS Code

The very rich projects management experiences and one to one service model make the high importance of business communication and our easy understanding of your expectations for Cheapest Factory Multifunctional Digital Oscillating Knife Cutter Machine for Cutting and Grooving Pet Acoustic Panels, We, with great passion and faithfulness, are ready to provide you with best solutions and striding ahead along with you to make a shiny potential.
The very rich projects management experiences and one to one service model make the high importance of business communication and our easy understanding of your expectations for China Digital Cutting Machine and Pet Panel Cutting Machine, we are fully determined to control the whole supply chain so as to deliver quality items at competitive price in a timely manner. We’re keeping up with the advanced techniques, growing through creating more values for our clients and society.
1629789697101275

Features of our TEZ1625:

1. Imported Taiwan square linear guide and servo motor ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no

deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine.

1629788965570331
dian

Ruida control system, stable and easy operate. Support multiple formats.

Oscillating Knife Cutting head, Suitable for a variety of materials.

tai
1629789011749369
1629789059860191
dian

9.0kw air vacuum pump, big adsorption power. Fix the materials stable.

Spindle head as option parts, the machine can add different head for different working materials.

tai
1629789071968966
1629789127512359
dian

Taiwan Delta servo motor and driver, enclosed system, high precision and fast speed cutting.

Auto feeding and unloading working table. The table can rotate to achieve the mass materials cutting automatic.

tai
1629789140790997
1629789155769392
dian

Vacuum table, the materials on the table will be fixed automatic.

4cm Aluminum alloy table. Very strong and durable.

tai
1629789169793200

# Working area:1600x2500x80mm

# Oscillating knife cutting head

# Rack and pinion transmission

# Taiwan HIWIN guide rails Y axis20mm X axis15mm

# Rudia control system, RDD6584g

# Taiwan Delta servo motor &driver

# Aviation aluminum vacuum adsorption table with felt

# 9.0kw air vacuum pump with silencer

# boke smart nest software

# red pointer

# 40mm Aluminum alloy vacuum table

# Cylinder for press materials

# 20 sets cutting tools



Option parts:

# Another head V-cut head

# Pneumatic head cutting head

# Another Round knife cutting head

# CCD camera

# Auto feeding system



Model TEZ1625
Max. working area 1600*2500mm
Power 9kw
Max. moving speed 1200mm/s
Max. cutting speed 800mm/s(plesae set the speed according to the material)
Tools configuration Various cutting tools, creasing wheel, pen, cross positioning laser
Applicable material Corrugated paper, non woven fabric , PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.
Cutting depth Max 50mm
Mechanical precision Maximum 0.05mm
Repeated positioning accuracy ±0.05mm
Driving system Delta servo motor
Control system Ruida control system
Material fixing method High power vacuum absorption with felt
Support file DXF, PLT, AI, SVG, PDF, NC, DST, DSB, etc.
Operating environment Temperature 0-40℃, Humidity 20%-80%RH
Voltage 380V/220V/50Hz/60Hz

The cutting machine can cut many kinds of soft materials and some hard materials as well. Such as:



Cloth, fabric, mash, jean, fiber, many layers Leather, PVC, PU, cloth Cardboard, corrugated board, honeycomb board,

chipboard, plastic corrugated board Shoe insole, EVA,rubber, PE foam, Car mats,Composite materials, plastic, etc.

1629789260209751 1629789269146200 1629789278376677

CNC HS code: 8465990000

Laser HS code: 8456110090

Oscillating knife cutting machine:8453800000

1628926237110259
