Factory Cheap Statue Making Mould Engraving 3D CNC Router 5 Axis

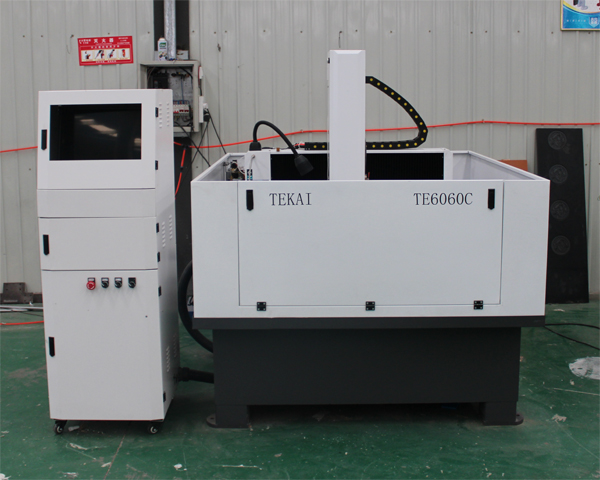

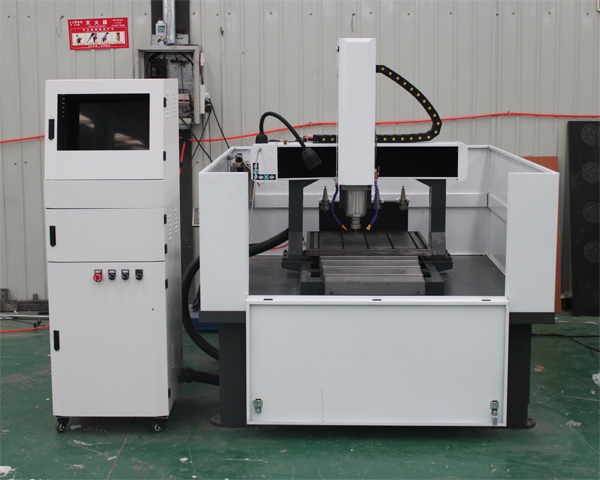

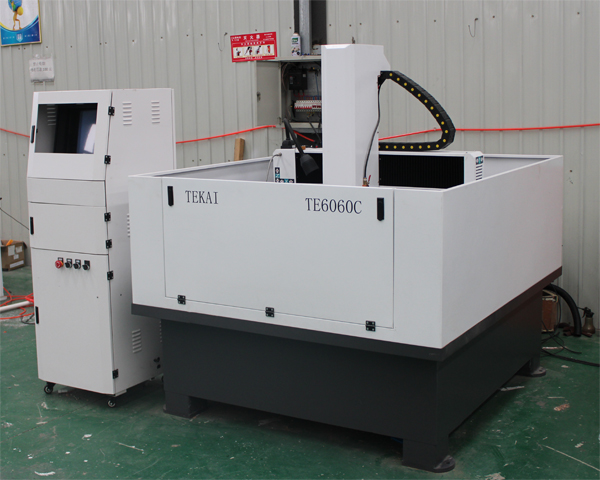

Model: TE6060C ATC cnc router

Brand:Tekai cnc

Working area: 600x600x200mm

CNC or not: CNC

Original: CN(Origin)
Delivery Time: 20-25 working Days

Certificatres: CE, FDA, ISO

Customized: Accept

Voltage: AC 220V/380V, 1P/3P, 50HZ/60HZ

Supply Ability: 90 Sets/Month

Packing size: 1550*1350*1810mm

Payment Terms: T/T(Telegraphic Transfer), Mastercard, e-Checking


Product DetailProduct Detail

circleConfiguration

circleApplication

circleHS Code

We’re proud from the higher client fulfillment and wide acceptance due to our persistent pursuit of high quality both on product and service for Factory Cheap Statue Making Mould Engraving 3D CNC Router 5 Axis, We never stop improving our technique and quality to keep up with the development trend of this industry and meet your satisfaction well. If you are interested in our products, please contact us freely.
We’re proud from the higher client fulfillment and wide acceptance due to our persistent pursuit of high quality both on product and service for China 5 Axis CNC Engraving Machine and CNC Engraving Machine, Please genuinely feel free to send us your requirements and we are going to respond for you asap. We’ve got a experienced engineering group to serve for your just about every comprehensive needs. Cost-free samples could be sent to suit your needs personally to understand much more information. In an effort to meet your requires, you should seriously feel free to make contact with us. You may send us emails and contact us directly. Moreover, we welcome visits to our factory from around the globe for much better recognizing of our organization. nd things. In our trade with merchants of numerous countries, we usually adhere for the principle of equality and mutual benefit. It is truly our hope to market, by joint efforts, each trade and friendship to our mutual advantage. We look forward to getting your inquiries.
1628842168355016

The features of TE6060C:

1. The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.

2. Heavy loading, non deformation, adopting imported double nut screw to ensure the engraving speed.

3. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.

4. Adopt high speed mould making spindle with invariably power, big torque, strong cutting, high-frequency and long-life.

5. All axis with TBI ball screw transmission, ensuring the machine fast speed and higher precision.

6. Available for continuous work for a long time.

1628847248782085
dian

3.2kw ATC constant power spindle, professional for metal mold making.

Linear 4 tools automatic changer.

tai
1628847287566839
1628847328507581
dian

Stainless steel metal dust-proof, it will protect the Taiwan TBI Ball Screw during the using.

Table moving, the gantry is fixed. The table moving, no vibrate, it will increase the working precision greatly.

tai
1628847434350638
1628847587520700
dian

Automatic tool sensor, it will help the machine find the Zero position automatic.

The machine whole body cast iron. Very heavy, and strong. No vibrate, no matter how many years, no any deformation.

tai
1628847602578707

#Working area: 600*600*200mm

#Spindle:3.2 kw water cooling ATC spindle

#Control system:Mach3 Controller

# Semi-closed heavy duty steel structure

#Drive system: Leadshine HBS758 servo motor and driver

#Transmission:Table moved

# 4 tools automatic changer

#Rail guide: Taiwan 20mm PMI linear square rail guide

#X,Y 20mm ball screw. Z 16mm

#Table: Cast iron T-slot table with sliding dust-proof metal plate

#Inverter: Shanghai Fuling  inverter

#Tool sensor

#water pump. software,Artcam

#Tool box

#Extra box tools

#auto oil lubrication



Description Parameter
Table Cast iron T-slot table
Spindle Constant ATC
Rotating speed 24000RPM/MIN
Motor and driver Leadshine HBS758 servo motor and driver
Accuracy ±0.02mm
Max moving speed 35000mm/MIN
Max engraving speed 25000mm/MIN
Code G code
Control system Mach3 control system
Voltage 220V/380V
Transmission Taiwan TBI Ball Screw transmission
Software Artcam, Type3
Frame Whole machine cast iron

1. It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, aluminum, and plastics.

2. Our CNC milling machine can widely apply to automotive, injection mold, ironware mold and engrave mold industries.

3. Specially designed for engraving and milling molds, eyeglasses, watch, panel,

badge, brand, graphics and words of three-dimensional and outside surface’s sleeking of large size.

1628907980107746 1628908149149270

CNC HS code: 8465990000

Laser HS code: 8456110090

Oscillating knife cutting machine:8453800000
