Modle name:TEM1325-4 axis cnc router
Spindle:Italy HSD ATC 9.0kw air cooling spindle
Motor:Japanese Yaskawa servo motor and driver
Control sytem:Taiwan Syntec control system
C axis:Left and right rotate 90 degree
Inverter:Taiwan 11KW Delta Inverter
Table surface:Vacuum table and 5.5kw Oil-free pump
Max moving speed:50000mm/min
Max engraving speed:32000mm/min
C axis motor:Japanese Yaskawa servo motor and driver
We also provide item sourcing and flight consolidation providers. We have now our very own manufacturing facility and sourcing business. We are able to supply you with nearly every sort of product similar to our solution selection for Top Quality China Wood Foam Car Molding 4 Axis CNC Router Price, Adhering to the business philosophy of ‘customer first, forge ahead’, we sincerely welcome clients from at home and abroad to cooperate with us.
We also provide item sourcing and flight consolidation providers. We have now our very own manufacturing facility and sourcing business. We are able to supply you with nearly every sort of product similar to our solution selection for China Car Molding CNC, Foam Molding CNC, Our skilled engineering group will always be ready to serve you for consultation and feedback. We are able to also offer you with absolutely free samples to meet your requirements. Finest efforts will likely be produced to offer you the ideal service and items. For anyone who is thinking about our company and merchandise, remember to contact us by sending us emails or contact us quickly. As a way to know our merchandise and firm. lot more, you can come to our factory to find out it. We are going to always welcome guests from all over the world to our business to build company relations with us. Remember to feel free to get in touch with us for business and we believe we’ve been going to share the top trading practical experience with all our merchants.

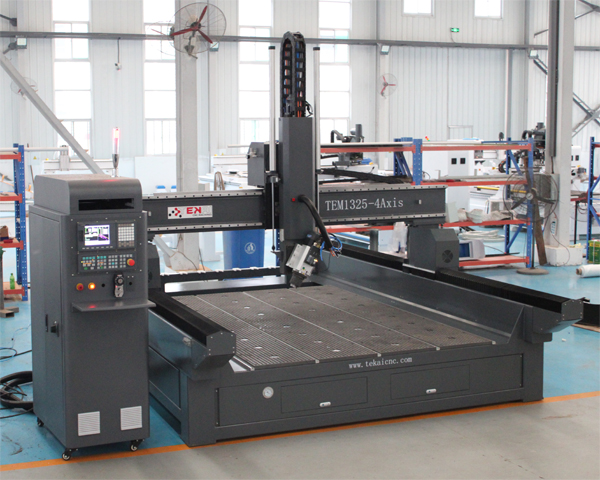

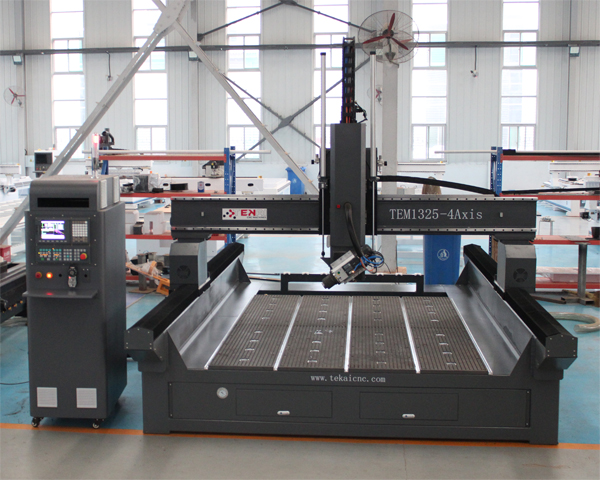

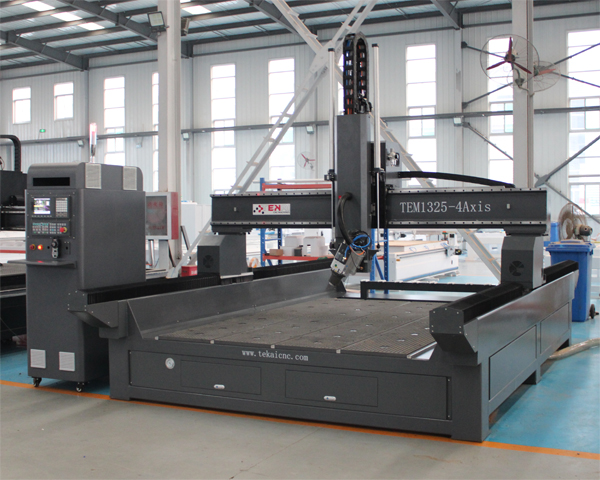

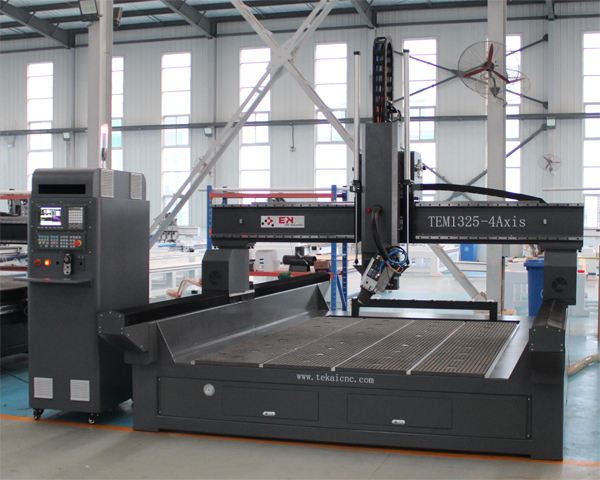

TEM1325-4 axis woodworking cnc router machine, high-end cnc router machine, swing head, the spindle can swing right and left 90 degree. Professional for 3d engraving. Different the machine with rotary engraving, the real 4 axis cnc router machine processing angle is more widely. Via 4 axis swing head. The size for 3d stereo processing is bigger than the 4th rotary machine. More powerful than the 3 axis cnc router machine. All the working which 3 axis cnc machine can process, for the 4 axis cnc router, it is more easy.
1. World famous accessories, all the accessories of TEM1325-4 axis cnc router machine original imported from different company famous brand. Syntec control system, Italy 9.0kw HSD ATC spindle, Japanese Yaskawa servo motor and driver, Shimp etc.
2. Heavy duty frame body, big steel tube welded. Via high temperature process, the body becomes stable and high toughness. Very hard has deformation.
3. Linear type 14 tools automatic changer. Fast speed, change one tool just need 8 seconds. Make the 4 axis machine working more fast and save time.
4. The working area is 1300x2500x400mm, C axis 180 degree. The special structure of TEM1325-4 axis. The Z axiscan be more bigger.
5.Vacuum table and T-slot table togther. No matter big plate cutting and 3d engraving. Or small artifacts process. All can fixed very stable.
6.C axis adpot original Japanese Yaskawa servo motor and driver, Ensure that the 4-axis gap is very very small. The working precision is very very high.
7.Y axis dust protect. During the 4 axis cnc router machine working, the dust will make the 25mm original Taiwan Hiwin square rails and Xinyue Gear dirty. So, Y axis adopt dust-proof design.
Taiwan Syntec control system. The famous brand
Japanese Yaskawa servo motor and driver, cooperate with Shimp reducer. Keep the machine working precision and moving smooth.
Auto oil lubracation. Keep the Gear, TBI Ball screw and Square rails clean via the software control.
Itlay 9.0kw HSD air cooling ATC spindle. 24000rpm/min. C axis, swing 180 degree.
Linear type ATC tools structure.
France Schneider, very safe and stable
Lock to the seat, help the customer change the collect.
Taiwan Delta 11KW Inverter, high frequency model. Adjust the speed of the spindle.
|TEM1325-4 axis cnc router
|Italy HSD ATC 9.0kw air cooling spindle
|Japanese Yaskawa servo motor and driver
|Taiwan Syntec control system
|Left and right rotate 90 degree
|Taiwan 11KW Delta Inverter
|Vacuum table and 5.5kw Oil-free pump
|Max moving speed
|Max engraving speed
|C axis motor
|Japanese Yaskawa servo motor and driver
|G code, *.u00, *.plt
|Motion Positioning Accuracy
|XY by gear transmission; Z by Taiwan TBI ball screw transmission
# Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board,epoxy resin, ABS, PP, PE and other carbon mixed compounds.
# Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
# Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboard doors, interior doors, sofa legs, headboards ,game cabinets, computer tables, sewing machines table, instruments.
# Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster
molding,and other advertising materials derivatives making
# Crafts:engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto
# Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models: engraving fine window, fencing and wall patterns, etc.
CNC HS code: 8465990000
Laser HS code: 8456110090
Oscillating knife cutting machine：8453800000
