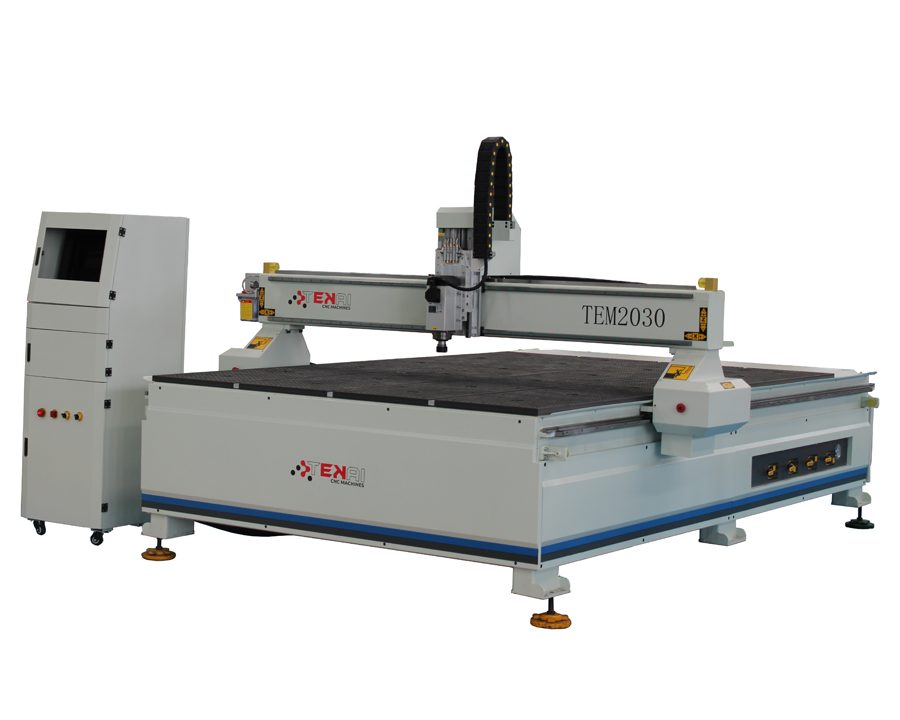

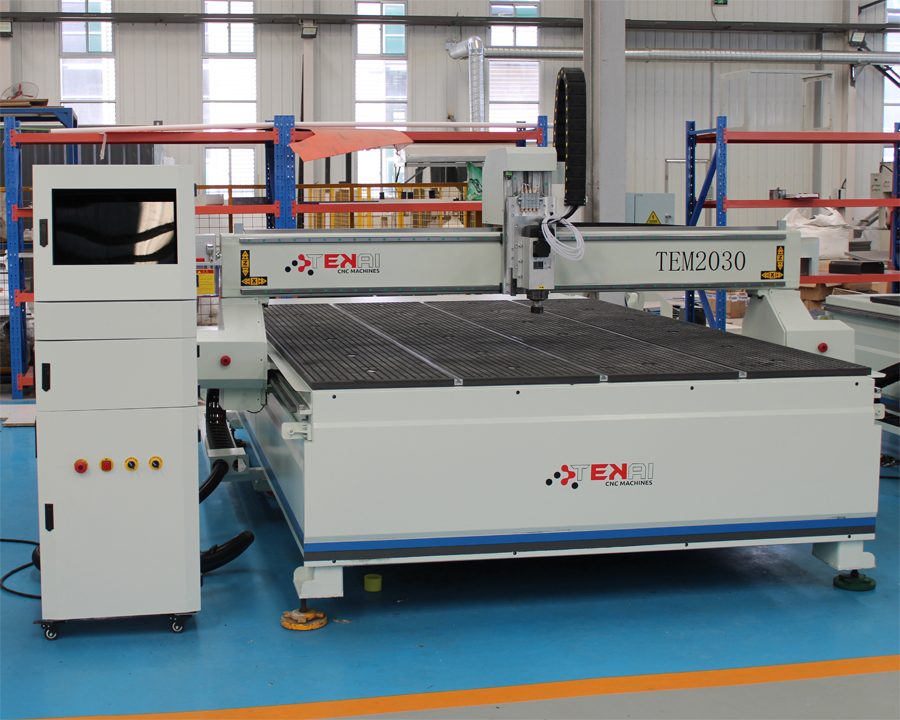

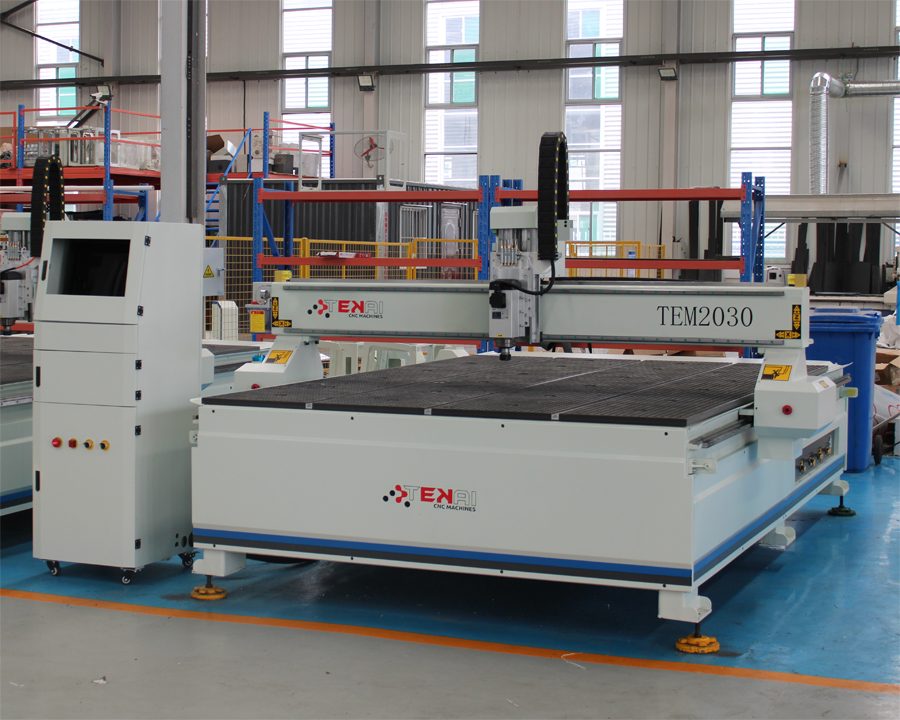

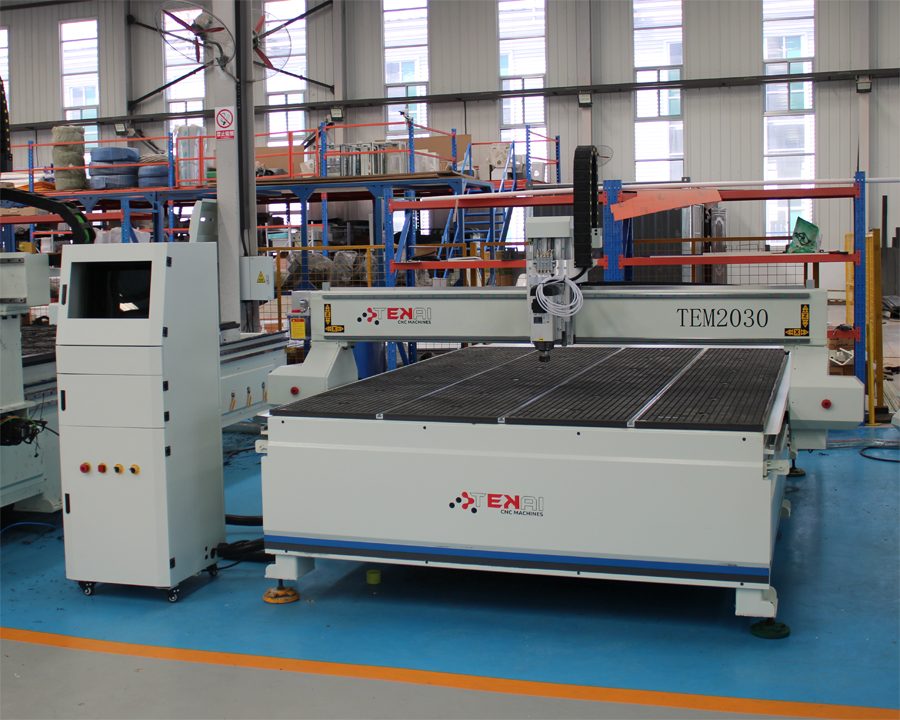

TEM2030 woodworking cnc router cabinet furniture making cutting machinery 4 axis cnc router engraving machinery with automatic working

Working Area:2000*3000*200mm


Lathe Structure:Seamless welded steel structure

X,Y Structure:Rack and pinion, gear drive, Taiwan Hiwin H20 square guide rails

Z Structure:Taiwan TBI rolling ball screw, Taiwan Hiwin H20 square guide rails

Spindle:3.0kw, 4.5kw, 5.5kw, 6.0kw etc

Spindle Speed:0-24000r/min, variable speed

Working Voltage:AC380V/60Hz/50Hz

Motor and driver:Nema34 Step motor and Leadshine M860 driver

Command:G code (HPGL,U00,mmg,plt)

Operating System:Mach3 control, Ncstudio, DSP etc.

Diameter of Cutter:φ3.175-φ22

Cooling Mode: Water cooling or Air cooling

Product DetailProduct Detail




circleHS Code


If you want to buy one cnc router for woodworking or updates one bigger cnc machine advertising cutting, the TEM2030 is one very good choice. 2000x3000x200mm working area, 2022 new design models. Some customers like high quality model. I want to tell you, this model, reasonable price, but very very high quality. Best accessories, all are famous brand import from different country. professional production. Committed to carving and cutting different materials for our customers.


1. Durable heavy duty frame body, keep the working stable during the machine fast moving speed.

2. Professional control system, We use Mach3, NC, DSP LNC and Syntec control system etc. The customer can choose according to their experience. We are all very skilled. And supply the most service.

3. Vcuum table and dust collector system. No matter the customer use the machine for cutting or engraving. No matter what materials, wood, plastic and MDF etc. Fix the materials must be the first step. Vacuum table increase the efficiency of the worker, save the Labour cost. The dust collector system collect the dust. Protect the safe of the Staff.

4. Famous brand accessories, all the accessories of Tekai adopt all over the world famous brand. Such as Taiwan Hiwin, Japanese Yaskawa, Omron, Italy HSD, Taiwan Delta, French Schneider etc. Ensure the machine durable, stable and working with high precision. Moving no mistake.

5. High quality cable with shield. The cable with shield, it can Block external signals. Avoid the random movement of the machine due to the interference of external signals.

6. Powerful frequency changing spindle enables the machine to cut organic glass of 30mm~50mm thick in one cut.

TEM2030 detailed parts 08

HQD Air cooling spindle, China best brand. Very durable, water cooling as spare parts.

French Orignal Schneider Electric Components. Very safe and stable.

TEM2030 detailed parts 06
TEM2030 detailed parts 07

The tool sensor, help the machine find the Zero position to start to work.

Auto oil lubracation, high quality models. Help lubricate the racks and guides of the machine. Extend their lifespan.

TEM2030 detailed parts 03
TEM2030 detailed parts 02

High-quality drag chain, index and protect the wires. Each section can be opened for easy installation and maintenance.

Vacuum control valve to control different areas of the vacuum table.

TEM2030 detailed parts 01
TEM2030 detailed parts 05

Vacuum table with two 5.5kw vacuum pumps, ensure that the materials can be automatically adsorbed very efficiently.

High quality Press Button. Safe and durable for using.

TEM2030 detailed parts 04

# Working area: 2000*4000*200 mm

# 5mm thickness tube heavy duty frame body

# Vacuum mixed T-slot table with two 5.5kw vacuum pumps

# Taiwan LNC control system with full screen touch

# 9.0kw HQD air cooling spindle, 24000 rpm/min

# 14 pieces tool changer

# X Y axis helical rack and gear transmission

# Z axis Taiwan TBI ball screw transmission

# X,Y, Z Taiwan Hiwin 25 square rails

# Taiwan Delta servo motor

# Fuling inverter

# Auto oil lubrication

# Filter

# Tool calibration

# Dust collector

# Mechanical punching and tapping

# Warm painting

# Limit switch, foot Stepping for level, tools etc.

Description Parameter
Working Area 2000*4000*200mm
Resolution 0.03mm
Lathe Structure Seamless welded steel structure
X,Y Structure Rack and pinion, gear drive,
Taiwan Hiwin H25 square guide rails
Z Structure Taiwan TBI rolling ball screw,
Taiwan Hiwin H25 square guide rails
Max. Idling Speed 60m/min
Spindle HQD ATC air cooling 9.0kw spindle
Spindle Speed 0-24000r/min, variable speed
Working Voltage AC380V/60Hz/50Hz
Motor and driver Taiwan Delta servo motor and driver
Command G code (HPGL,U00,mmg,plt)
Operating System Taiwan LNC control system with full touch screen
Diameter of Cutter φ3.175-φ22
Cooling Mode Air-cooling
Dust-collect Function Yes
Work Holding Vacuum mix T-slot table
Tool Magazine Liner 14 tools automatic changerISO 30 tools
Gross Weight 2300KG

Wooden door and furniture decoration industry: solid wood and composite door, cabinet door, large-area plate carving, solid wood, panel furniture carving, solid wood art mural carving, etc.

Wood products processing: clocks, electrical countertops, sporting goods and equipment.

Musical instrument industry: three-dimensional curved surface and shape cutting of sculptable musical instruments.

Crafts industry: photo frames, jewelry boxes.

1 (1) 1 (2) 1 (3) 1 (4) 1 (5) 1 (6)

CNC HS code: 8465990000

Laser HS code: 8456110090

Oscillating knife cutting machine:8453800000
