TEG1212 advertising cnc router 1212 small machinery aluminum carving 4 axis 3d cnc router with rotary

Model:TEG1212 3 axis cnc router

Spindle:1.5kw water cooling spindle

Working area:1200x1200x200mm

Spindle speed:2400rpm/min

Body structure:Cast iron body

Transmission:Taiwan TBI ball screw

Table:T-slot table with PVC

Motor:450A stepper motor

Driver:Leadshine M860 driver

Position accuracy:±0.03/300mm

Reposition accuracy:±0.02mm

Max. Motion speed :8000mm/min

Max. Working speed:6000mm/min

Controller:Mach3 control system

Inverter:Fuling inverter

Guide rails:Taiwan Hiwin 20mm square rails


Product DetailProduct Detail

circleConfiguration

circleApplication

circleHS Code

IMG_7625

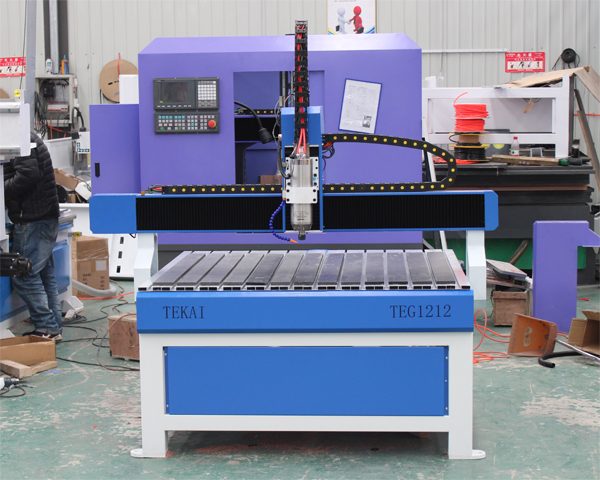

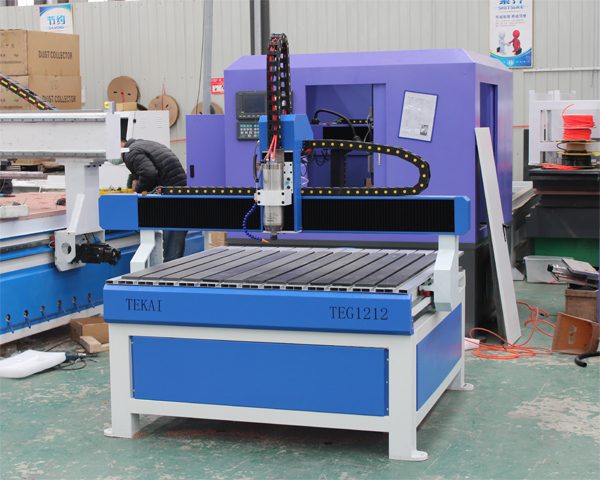

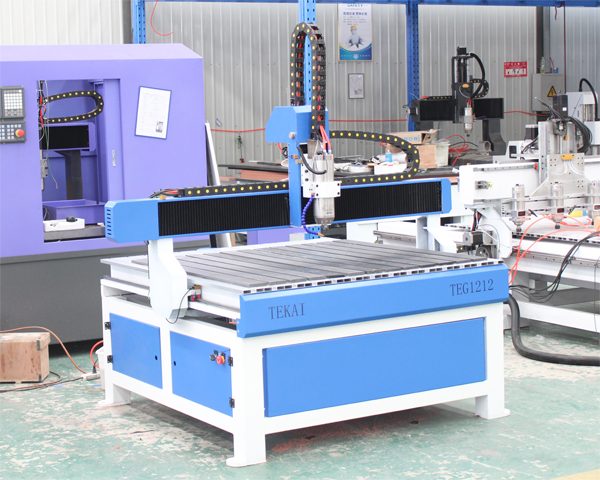

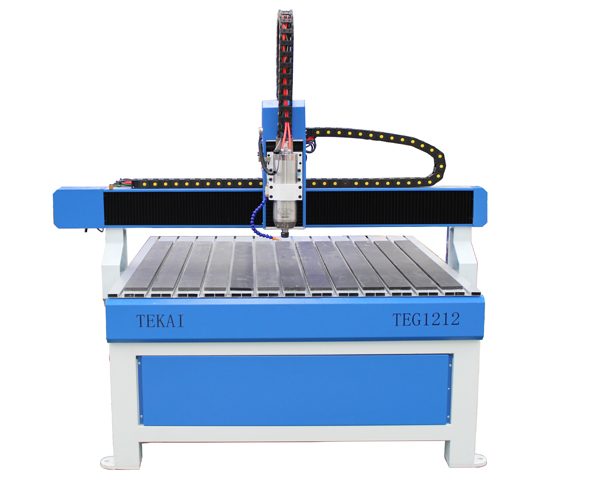

TEG1212 Product Description

TEG1212 3 axis CNC router is a desktop CNC machine, due to durability and high cost performance, it is very popular all around the world. Mainly used all the non-metal materials and soft-metal engraving cutting milling and drilling, especially suitable for small workpiece processing.

TEG1212 3 axis CNC router uses 1.5kw water cooling spindle, 24000r/min, constant power spindle.

TEG1212 3 axis CNC router adopts cast iron body, and the gantry and column are also cast iron. The machine is stable and durable, does not deform, and will not shake when processing materials, ensuring accuracy.

TEG1212 3 axis CNC router adopts Taiwan TBI ball screw transmission, high transmission accuracy, smooth movement. X Y axis specification is 2510, Z axis specification is 1605.

TEG1212 3 axis CNC router driving by Leadshine M860, Leadshine brand is the most popular in China, quality is high. And 450A stepper motor (NEMA34), 6N/S, high torque with cheap price. Besides, servo motor is also available as an option, such as Leadshine Hybrid motor HBS758, Delta servo motor 750w, Yaskawa servo motor 750w, etc.

TEG1212 3 axis CNC router adopts Mach3 control system, connected with computer via USB port or Network cable port. Mach3 CNC control software is an open CNC system, which has the characteristics of simple operation, convenient maintenance, openness, stable performance and low price. Support a variety of DXF, BMP, JPG, HPGL file format input, visual G code display, and directly generate G code. It can realize automatic tool setting and program jump execution (breakpoint memory). DSP, Nc studio and Syntec controller can also be selected.

01
dian

Mach3 control system via USB port to link with customer customer. Our engneer can hlep customer set up the parameter via control customer computer via teamviwer.

The gantry also is cast iron. Our mahine gantry is cast iron. Not cast aluminum. Castiron structure for gantry, it can make the machine working more smooth. No vibrate.

tai
02
03
dian

Taiwan TBI Ball Screw transmission. X, Y axis 2510mm size, Z axis 1605mm size.

Taiwan Hiwin 20mm Suqare rails. Origial type, ensure the machine working smooth.

tai
04
05
dian

X axis, dust protect. When cutomer use the machine milling the wood. It can protect the dust make the Ball screw and the Rails dirty. Influence the machine working.

Water cooling spindle, high speed 24000rpm/min rotating. Big power, 1.5kw/2.2kw/3.0kw according the customer working and materials to choose.

tai
06
07
dian

Oil mist cooling system as option parts. It is one more professional coolig system. Compare with water cooling. More easy to operate. At the same time, it also can use water to cooling.

# Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

# Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

# Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

IMG_0877 IMG_0878 IMG_2313 IMG_5148 IMG_5889 IMG_6212

CNC HS code: 8465990000

Laser HS code: 8456110090

Oscillating knife cutting machine:8453800000
