2024 Newest design woodworking cnc router 2040 Linear 14 sets atc cutting MDF acrtlic plastic aluminum machinery without cabinet

Working Area:2000*4000*200mm/Option: 4x8ft, 5x10ft, 2000x3000mm


Lathe Structure: 6mm thickness welded heavy duty frame body

X,Y Structure:Rack and pinion, gear drive, Taiwan Hiwin H25 square guide rails

Z Structure:Taiwan TBI rolling ball screw, Taiwan Hiwin H25 square guide rails

Max. Idling Speed:60m/min

Spindle:HQD ATC air cooling 9.0kw spindle

Spindle Speed:0-24000r/min, variable speed

Working Voltage:AC380V/60Hz/50Hz

Motor and driver:Taiwan Delta servo motor and driver

Command:G code (HPGL,U00,mmg,plt)

Operating System:Taiwan LNC control system

Diameter of Cutter:φ3.175-φ22

Cooling Mode:Air-cooling

Product DetailProduct Detail


Tekai CNC: Increase your Processing efficiency by easily getting the changing of tools and

working speed you need.


2024 newest design ATC cnc router machine without cabinet.  The passed time, we produce every large format cnc router, all will equipped an high quality cabient. It is also an console for the atc big cnc router wood. But, We found that we overlooked a very important issue. Some customers, they do not have enough space. One big cabinet, it means needs more space. So, we designed the newest structure. No cabient. Built-in control cabinet. Only keep a small operating platform. Greatly saves space. The ATC cnc router 2040, it is used for process all kinds of  non metal materials. All tool changing machine models can be produced to the latest designs. Here is the detailed information about the ATC cnc router 2040.

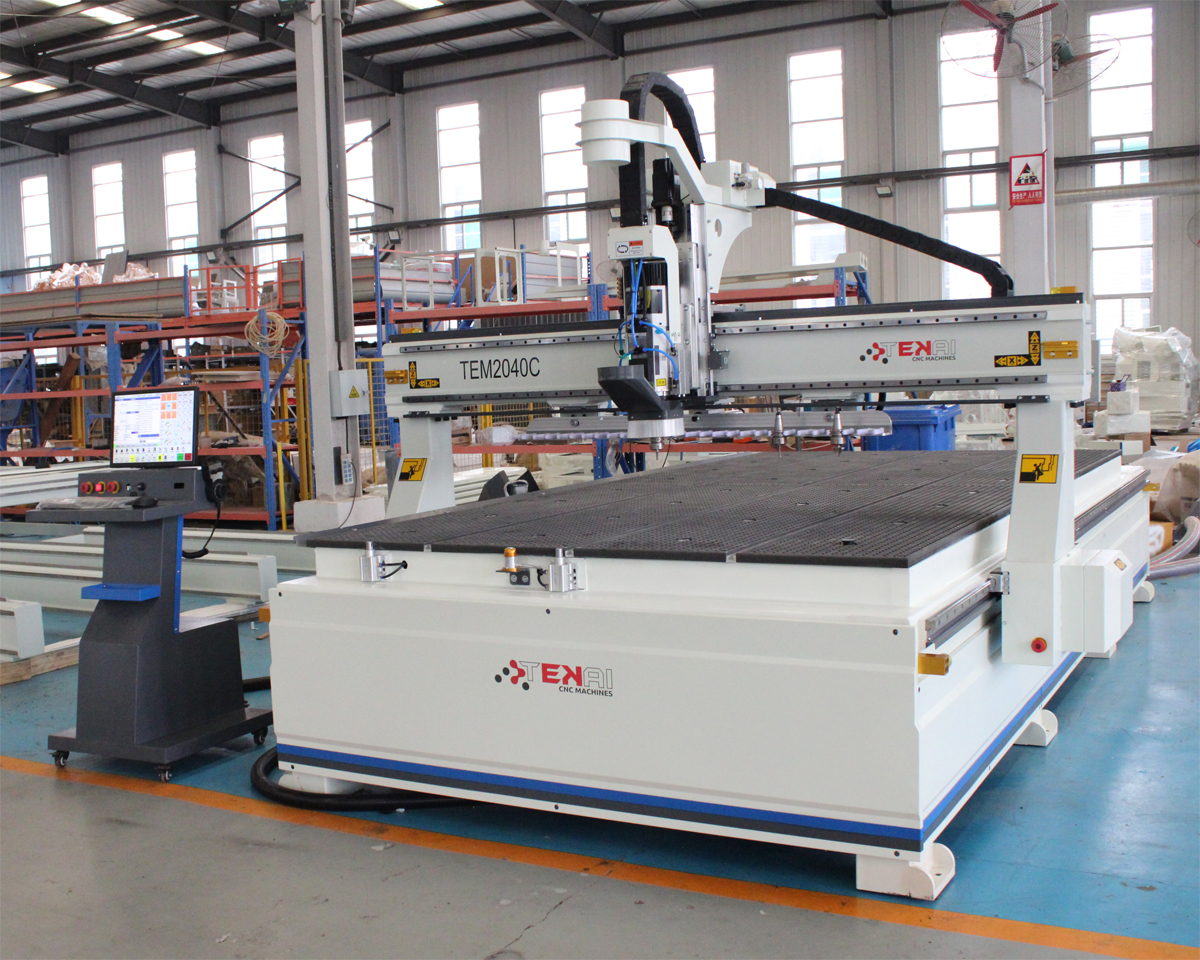

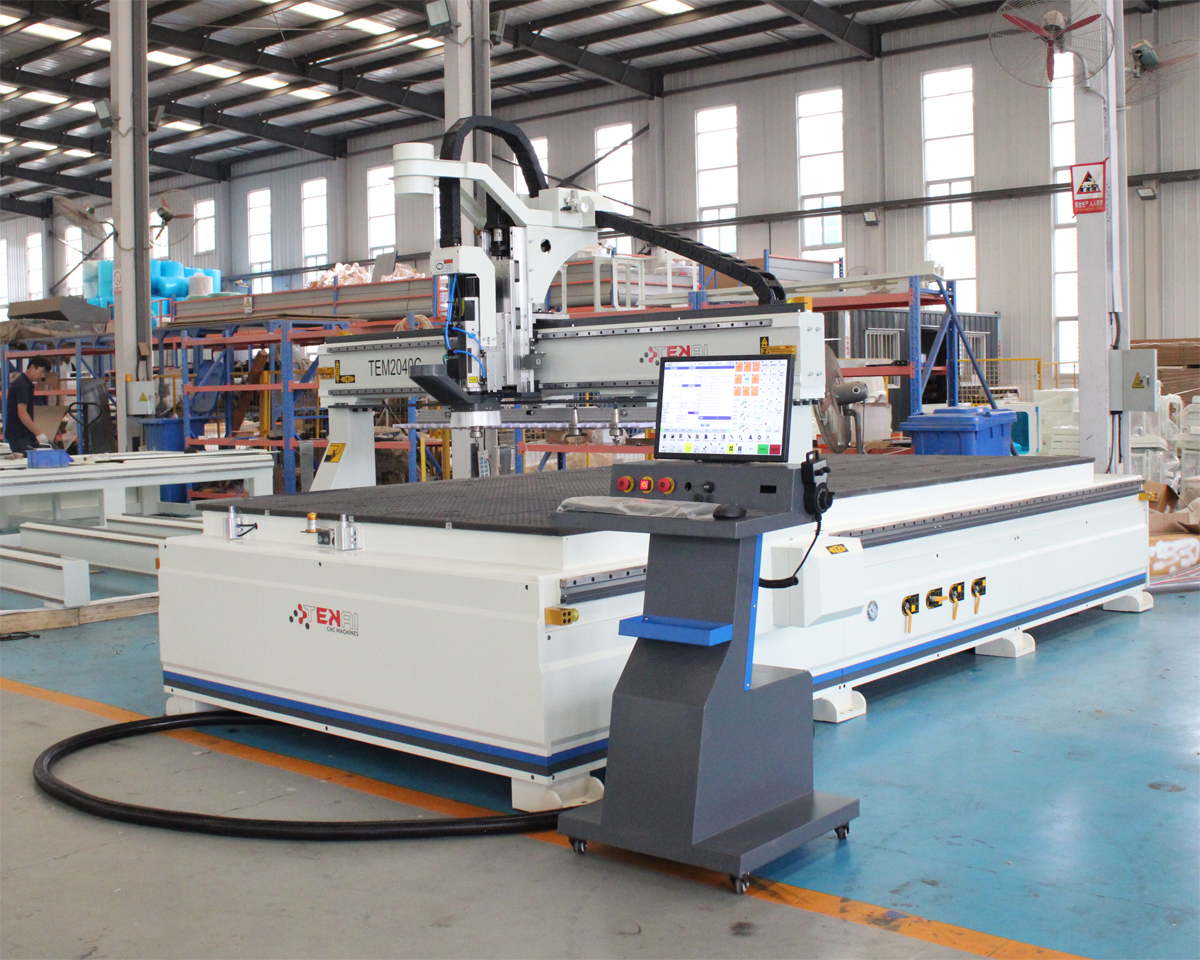

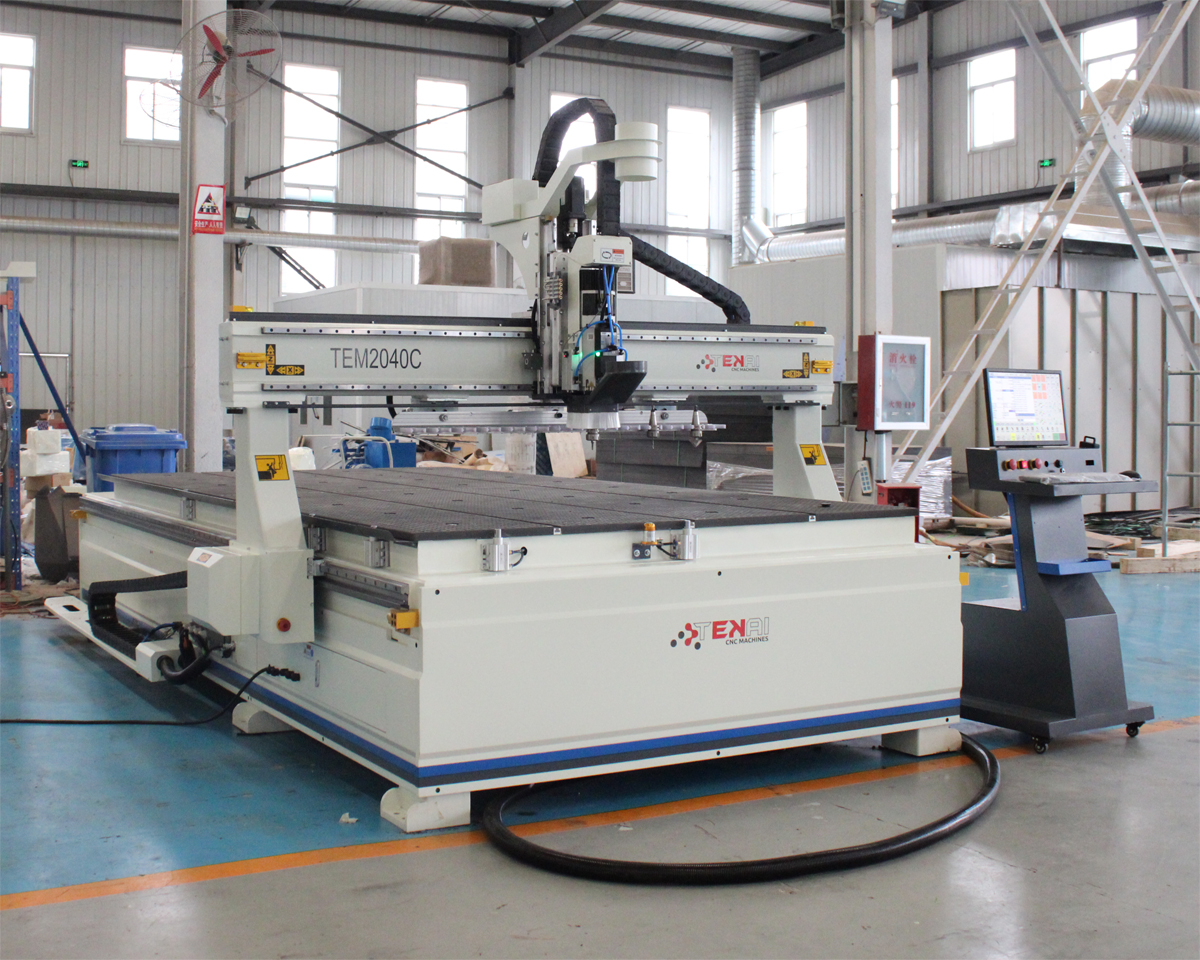

The real machine picture of TEM2040C:


TEM2040C 3 axis cnc with automatic 01



 The Features of TEM2040C:


—Rigid steel construction frame and designed to be reliable, durable and precise. Designs has carried out on computer including 3D software support for drawing and strength analysis.

—Japanese Yaskawa/Taiwan Delta servo system. Enclosed system, accurately receive and process every signal. So that the machine will not lose anything during the working process!

—Linear ATC tool changer system, 14 sets tool automatic changer. Only needs 6 seconds for changing one tool from one to another.

—Vacuum suction table help you fix all kinds of parts in the fastest way. Big power vacuum pump will serve for you many years.

—Taiwan LNC control system, easy operate, but multi function. The user will know how to operate in the fastest speed.

—Equipment on the machines are worldwide known brand names like HQD, Delta, HSD, Schneider, Omron etc.


The Detailed parts of TEM2040:


More than ten years of experience, we screened and compared hundreds of suppliers. The cnc parts we use, all are from World famous brand. HSD, HQD, Hitech, shimp, Omorn, Shired etc. Even one small press button. All are adopt comply with European CE quality certification. This not only ensures the service life of the machine, but also ensures the personal safety of the operator. Share the detailed picture with all the customers.


Detailed parts of TEM2040C 01

Detailed parts of TEM2040C 02


 Applications of TEM2040C atc cnc router


​1) Wood furniture industry: wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


2) Advertising industry: advertising identification, sign making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


3) Die industry: a sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

 Samples from Tekai CNC


Our services

Pre-sales service


1. We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.

2. 24-hours online Inquiry and consulting support.

3. Support sample testing.

4. We welcome you to visit our factory.

After-sales service


1. Training how to install the machine, training how to use the machine online.

2. Engineers available to clients’ factory for training.

3. Guarantee for two years.

4. 18-hour technical support by email or calling.

5. User-friendly English manual for machine using and maintaining.

6. Free technician training for customers.

Package & Delivery


1. Outside package: standard marine export plywood case.


2. Inner package:Stretch film and plastic film for humidity.


We can package according to your requests.

1. We accept Western union, Moneygram, TT, Trade assurance of Alibaba, and you can pay 30% in advance, 70% before delivery.

2. The machine will be produced after received your deposit. After the machine is ready, we will show you the machine photos and the testing video.

3. After you agree, please finish the balance. Finally, we arrange the delivery.

4. All thing is tested well, then we arrange the delivery.

All machines are customizable. The configuration of the machine is not stable. It needs to confirm according to your detailed demands. If you can not confirm what configuration is suitable for you. Please kindly contact with us. We will give you the right advise.






Working area

2000*4000*200mm (can be customized)

Working Voltage

380V, 3Phase, 50Hz

Control System

Taiwan LNC control system


9.0kw HQD ATC air cooling spindle

Spindle speed


Tool magazine

Linear type + 14pcs ISO30 tool holders

Motor and Driver

Taiwan Delta servo motors and drivers


Fuling inverter


New type thicker and bigger heavy duty welded frame and gantry

Table surface

T-slot and Vacuum Working Table with 4 Zones

Gantry structure

Gantry Moving

Lubrication system

Automatic lubrication system


Automatic tool sensor calibration


X,Y Axis: Helical rack, Taiwan Hiwin/PMI 25# Rail Linear Bearing with dust hood protection for Y axis.

Z Axis: Taiwan Hiwin/PMI Rail 25# Linear Bearing & Taiwan TBI Ball Screw

Vacuum pump

Double 5.5kw Vacuum Pump

Dust Collector

3.0kw double pockets dust collector

Command language

G Code


Wood, MDF, PVC, Acrylic, Carboard, Rubber, Foam.
