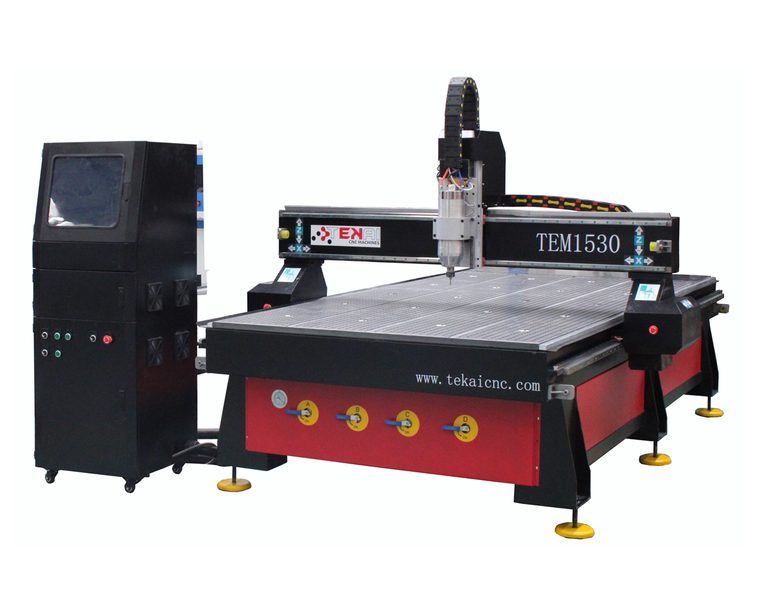

TEM1530 woodworking cnc machinery wood cnc router 1530 aluminum composite cutting cnc router with vacuum system

Model:TEM1530

Working area:1500*3000*200mm

Spindle:3.0kw water cooling spindle

X Y axis transmission:Gear transmission

Z axis transmission:Taiwan TBI ball screw

Guide rails:Taiwan Hiwin 20mm square rails

Control system:Mach3 controller

Motor:450B stepper motor

Driver:Leadshine M860 driver

Inverter:Fuling inverter

Max motion speed:30000mm/min

Max working speed:25000mm/min


Product DetailProduct Detail

circleConfiguration

circleApplication

circleHS Code

TEM1530 cnc

This is one updates machine from TEM1325, 1500x3000mm working area. If you feel your machine is a little small, or you have bigger materials need to cutting and engraving. I think it is time to updates your machine. TEM1530 is your choice with reasonable price. Automaitc processing your materials. Widely use Wood Furniture Industry, Advertising Industry, Die Industry, Relief sculpture. Wave plate, sigh making, Acrylic engraving and cutting, a sculpture of copper, aluminum etc.

Features

1) Heavy duty frame body, welded steel tube machine bed and gantry. Then, it undergoes vector treatment such as high temperature quenching.

2) X axis one motor, Y axis two motors, Z axis one motor. Adopt Nema34 motor, 6N/M. Servo motor 8N/M or 12N/M as option parts. Keep machine moving fast and great power.

3) During the machine working, there will be auto oil lubracation protect the Hiwin Square rails. reduce the time of machine maintenance.

4) China air or water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting work.

5) With rack and gear transmission for X Y axis it can have faster speed than ball screw machines. Ball screw transmission for Z axis, ensuring the machine fast speed and higher precision.

6) Good software compatibility, with machine, we provide Artcam, Aspire, Powermill software etc.

7) With Mach3 control system, very popular control system with high quality.

Detailed parts 05
dian

Mach3 control system with USB port to link. DSP, Nc studio etc as option parts. Very popular system in the market. Easy put new function on the software.

3.0kw water cooling spindle, more powerful, low noise, suitable for engraving and cutting work.

tai
2
Detailed parts 03
dian

Helical straight rack and pinion, 1.5M. High precision measurement installation. Ensure the machine moving smooth. Increase the machine working speed.

High-quality drag chain, protect the built-in cable of the engraving machine, it has the characteristics of low noise, wear resistance and high-speed movement.

tai
Detailed parts 01
Detailed parts 04
dian

All machines are equipped with foot panel to help customers adjust the flatness of the machine table.

Vacuum control valve, each valve controls a vacuum area, easy to operate.

tai
Detailed parts 06
Detailed parts 07
dian

Z axis Taiwan TBI Ball screw, moving more high precision. Keep Z axis working precision.

Tool sensor, help to find the zero point of the machine.

tai
Detailed parts 08

# Working area: 1500*3000*200 mm
# Heavy duty frame body
# T-slot table with pvc
# Mach3 control system via USB port link with your computer.
# 3.0kw water cooling spindle
# X Y axis rack and gear transmission
# Z axis Taiwan TBI ball screw transmission
# Taiwan HIWIN 20mm square rails
# Step motor and Leadshine M860 driver
# Japan Omron limited switch
# Fuling inverter
# auto oil lubrication
# Filter
# Tool sensor
# Standard tool box
# Warm painting, keep never drop paint
# Tools for cutting and milling, foot panel etc.



Option parts:

1) Vacuum table with 7.5kw vacuum pump
2) Double bag dust collector
3) Servo motor and driver
4) Other power spindle

Model TEM1530
Working area 1500*3000*200mm
Spindle 3.0kw water cooling spindle
X Y axis transmission Gear transmission
Z axis transmission Taiwan TBI ball screw
Guide rails Taiwan Hiwin 20mm square rails
Control system Mach3 controller
Motor 450B stepper motor
Driver Leadshine M860 driver
Inverter Fuling inverter
Max motion speed 30000mm/min
Max working speed 25000mm/min
Lubrication system Auto oil lubrication

Optional parts

5.5kw water cooling spindle
Rotary axis
Leadshine Hybrid motor HBS758
Vacuum table with 5.5kw vacuum pump
Dust collector

1. Wood Furniture Industry: wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cup board doors, interior doors, sofa legs, headboards, game cabinets, computer tables, sewing machines table, instruments etc.

2. Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts.

4. Architectural Models: engraving fine window, fencing and wall patterns, etc.

samples from TEM1530

CNC HS code: 8465990000

Laser HS code: 8456110090

Oscillating knife cutting machine:8453800000
