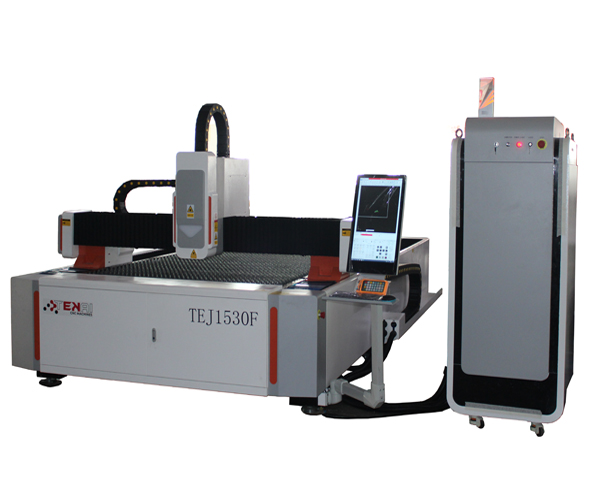

Fiber laser cutting machine of performance characteristics


Fiber laser cutting machine it can do plane cutting, also can do bevel cutting processing, and the edge neat, smooth, suitable for metal plate and other high-precision cutting processing, coupled with the mechanical arm can be three-dimensional cutting instead of the original import of five axis laser. Compared with ordinary carbon dioxide laser cutting machine, it saves more space and gas consumption, and has a high photoelectric conversion rate. It is a new product of energy saving and environmental protection, and also one of the world’s leading technology products.


Working principle

Fiber laser is a new type of fiber laser that is newly developed in the world. It outputs high energy density laser beam and concentrates on the surface of the workpiece, so that the area irradiated by ultra-fine focal spot on the workpiece can be instantly melted and vaporized, and automatic cutting can be realized by moving the spot irradiated position through numerical control mechanical system.

Advantages of fiber laser cutting machine compared with CO2 laser cutting machine:

1) Excellent beam quality: smaller focusing spot, finer cutting lines, higher work efficiency and better processing quality.

2) Extremely high cutting speed: twice as high as CO2 laser cutting machine of the same power.

3) High stability: the use of the world’s top imported fiber laser, stable performance, the service life of key components can reach 100,000 hours.

4) Very high electro-optical conversion efficiency: the photoelectric conversion efficiency of fiber laser cutting machine is about 30%, 3 times higher than CO2 laser cutting machine, energy saving and environmental protection.

5) Very low use cost: the power consumption of the whole machine is only 20-30% of the same CO2 laser cutting machine.

6) Very low maintenance cost: no laser working gas; Optical fiber transmission, without mirrors; Can save a lot of maintenance cost.

7) Easy operation and maintenance: optical fiber transmission, no need to adjust the optical path.

8) Super flexible light guiding effect: compact size, compact structure, easy to flexible processing requirements.

Industry application

Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal foreign machining, kitchen utensils and appliances, and other manufacturing industries.

Processing of materials

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, galvanized zinc plate, pickling plate, copper, silver, gold, titanium and other metal plate and pipe cutting.

Processing advantages

1) High precision, fast speed, narrow slit, minimum heat affected zone, smooth cutting surface without burr.

2) Laser cutting head will not contact with the surface of the material, not scratch the workpiece.

3) The narrowest slit, the minimum heat affected zone, the workpiece local deformation is minimal, no mechanical deformation.

4) Flexible processing, can process arbitrary graphics, can also cut pipes and other profiles.

5) Can be steel plate, stainless steel, aluminum alloy plate, hard alloy and other materials of any hardness without deformation cutting.


Laser cutting machine is a technological revolution of sheet metal processing, is the “processing center” of sheet metal processing; Laser cutting machine flexible level of high, cutting speed, high consumption efficiency, short product consumption cycle, for customers to win the general market.
