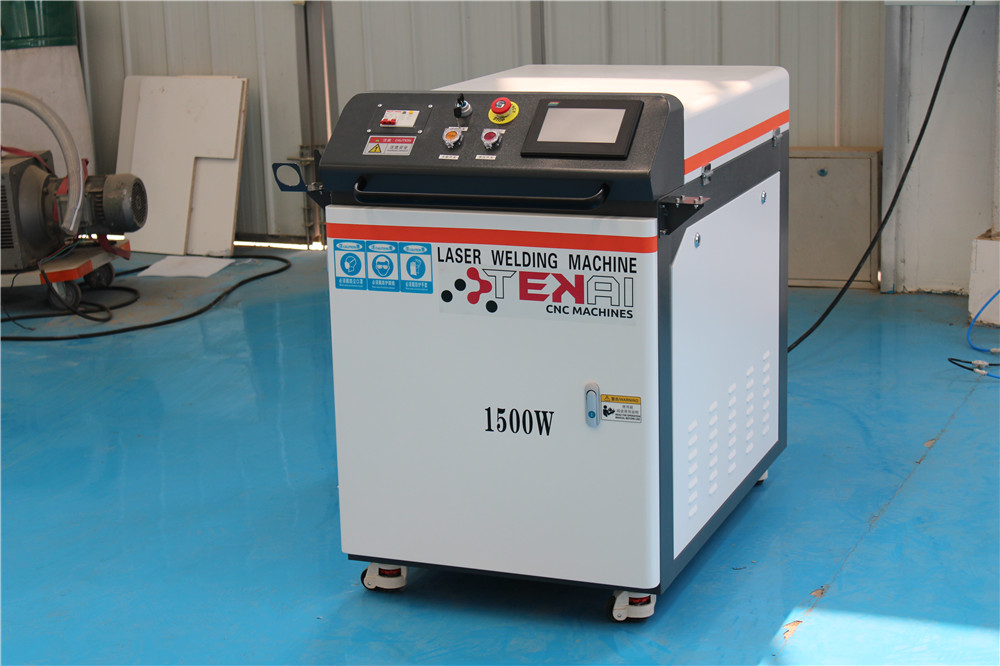

What is the fiber laser welding machine?


The hand-held fiber laser welding machine is a new generation of laser welding equipment. Its working principle is to directly irradiate a high-energy intensity laser beam on the surface of the material. Through the interaction between the laser and the material, the interior of the material is melted, and then cooled and crystallized to form a weld.





The optical fiber welding machine is mainly composed of optical fiber, welding system, hand-held welding gun, automatic wire feeder and water chiller.

Fiber Generator:IPG,Racuys,MAX,JPT Brand etc.

Water Chiller:S&A,Hanli,Tongfei brand etc.

Welding System:WSX or Ospri System.

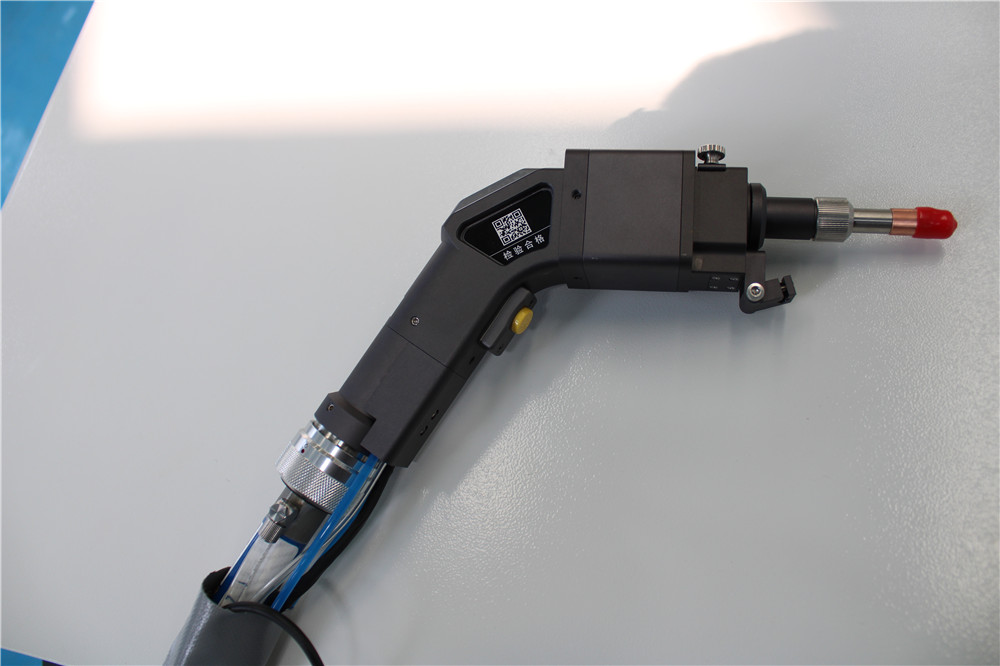

Handheld fiber optic connector:Adopt QBH Handheld fiber optic connector.


1. The unique laser control box has three light output modes: QCW (quasi-continuous), PWM (pulse) and CW (continuous).

2. Ergonomic design, compact structure, easy to use.

3. Blow control and safety lock with welding head.




Main technical features and advantages of hand-held fiber laser welding machine:


1.Welding distance:The handheld welding head is equipped with 5m-10M original optical fiber, which can be used for outdoor welding and long-distance welding.
2.Easy to move:Hand-held laser welding is equipped with moving pulleys, which is comfortable to hold and can adjust the station at any time, without the need for a fixed station, free and flexible, suitable for various working environment scenarios.
3.Welding method:It can realize welding at any angle, such as stitch welding, butt welding, vertical welding, flat fillet welding, inner fillet welding, outer fillet welding, etc. It can weld workpieces with various complex welds and irregular shapes of large workpieces. Welding at any angle can be achieved. In addition, it also has a cutting function, welding and cutting can be switched freely, just change the welding copper nozzle to the cutting copper nozzle, which is very convenient.

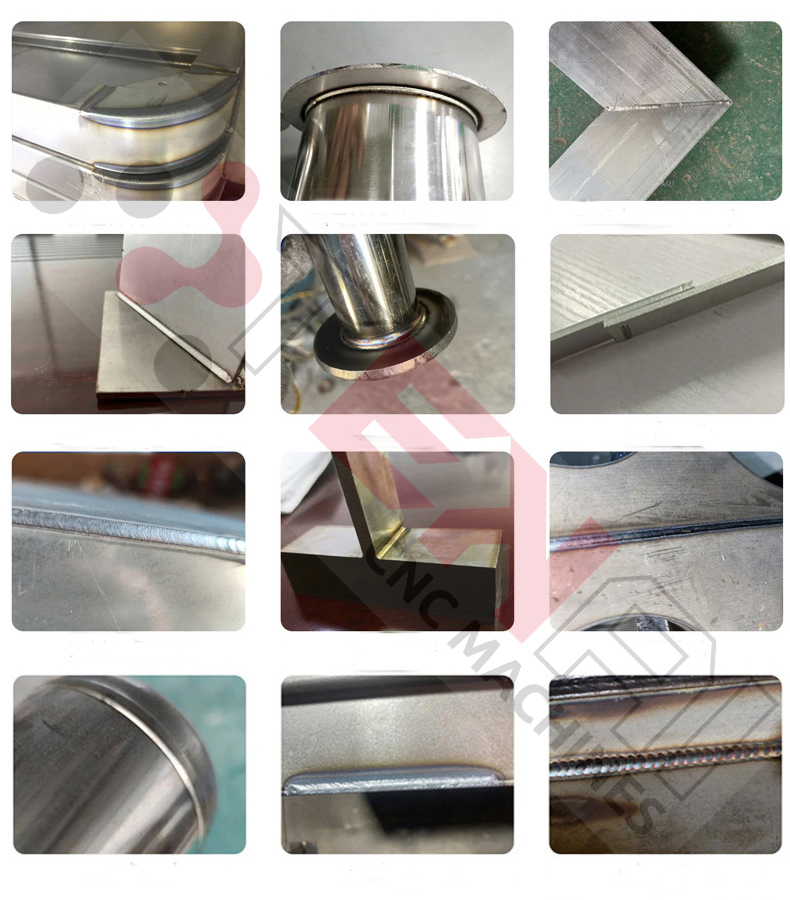

4.Weld effect:Continuous welding, smooth, fish scale pattern, beautiful without scars, less subsequent grinding process.
5.Welding cost:Inexperienced workers can easily complete welding after using the hand-held laser welding machine, reducing labor costs.
6.Security alert:The welding tip is only effective when the touch switch is in contact with the metal, and the light is automatically locked after the workpiece is removed, and the touch switch has a body temperature sensor. High security to ensure the safety of operators during work.


Mainly for the fixed position of large and medium-sized sheet metal, cabinet, chassis, aluminum alloy door and window frame, stainless steel wash basin and other large workpieces such as inner right angle, outer right angle, plane weld welding, small heat affected area during welding, small deformation, and welding depth Large and solidly welded. Widely used in kitchen and bathroom industry, home appliance industry, advertising industry, mold industry, stainless steel product industry, stainless steel engineering industry, door and window industry, handicraft industry, household products industry, furniture industry, auto parts industry, etc.
