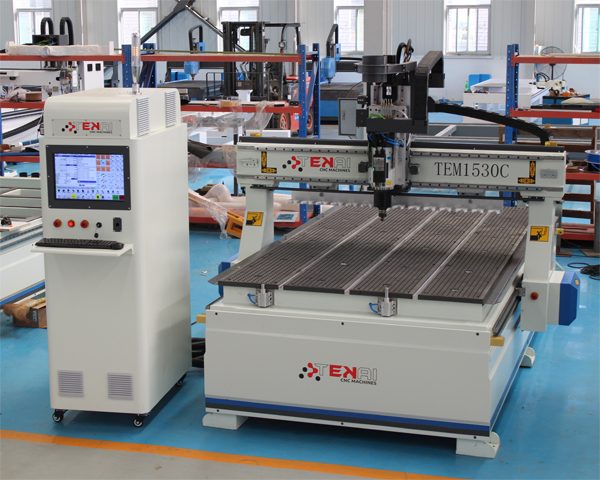

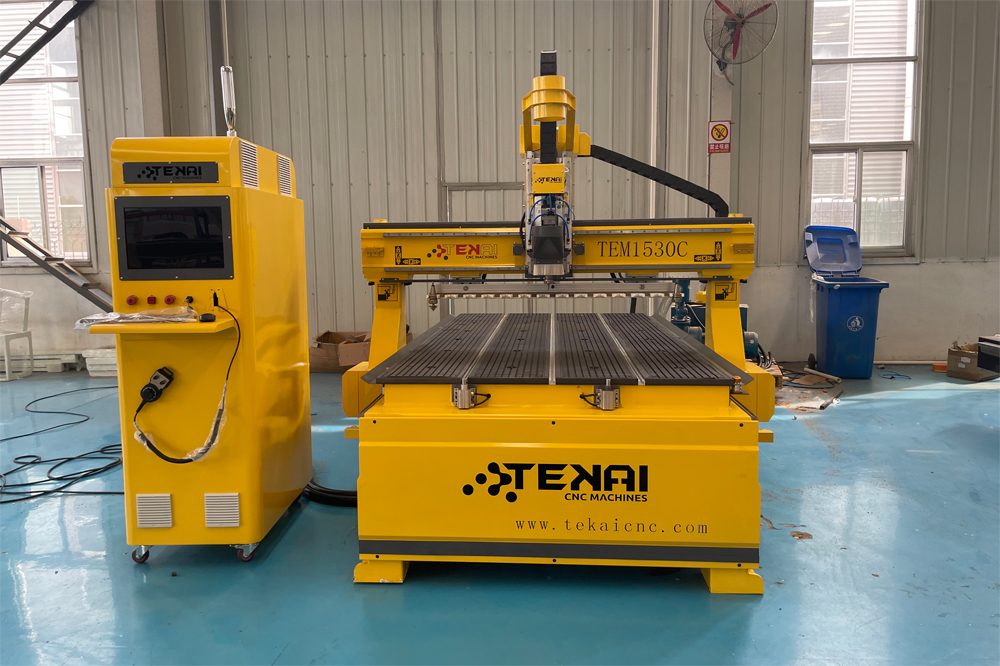

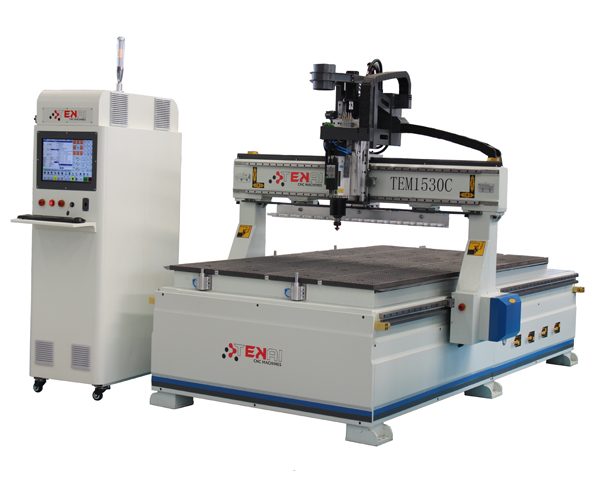

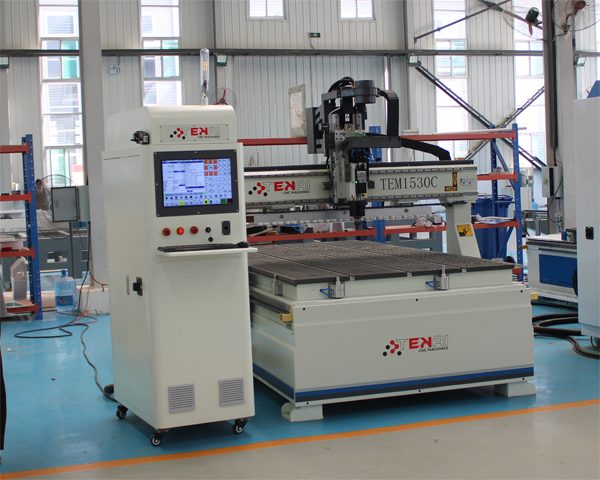

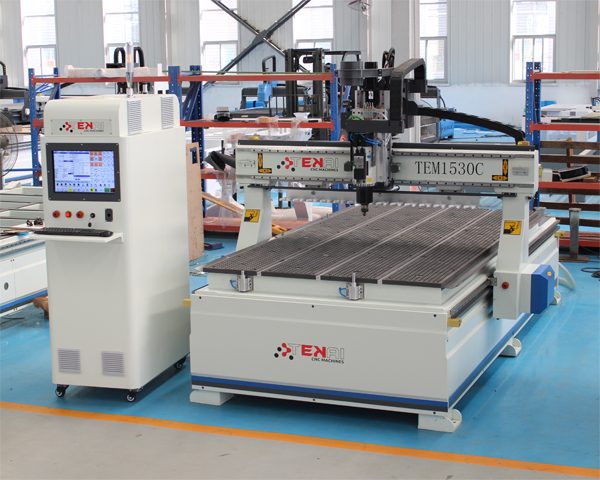

TEM1530C 9.0kw HQD ATC air cooling spindle cnc machine for wooden furniture wooden door carving 1500x3000mm plate cutting machine with 24000rpm


Working area:1500*3000*200mm (can be customized)

Working Voltage:380V, 3PHASE, 50HZ (can be customized)

Control System:Taiwan LNC control system

Spindle:9.0kw HQD ATC air cooling spindle

Spindle speed:24000rpm/min

Tool magazine:Linear type + 14pcs ISO30 tool holders

Motor and Driver:Taiwan Delta servo motors and drivers

Inverter:11kw Taiwan DELTA inverter VFD

Structure:New type thicker and bigger heavy duty welded frame and gantry

Table surface:T-slot and Vacuum Working Table with 4 Zones

Gantry structure:Gantry Moving

Lubrication system:Automatic lubrication system

Calibration:Automatic tool sensor calibration

Product DetailProduct Detail



circleHS Code


5x10 Linear ATC woodworking cnc router 1530C. Bigger working area than the TEM1325C. It can process bigger size materials. Widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting,3D embossment and so on. New year newest ATC cnc router 1530 with affortable price is on sale.

The Features of TEM1530C:

1.Automatic 5x10 cnc router machine, Z axis adopt imported high precision Taiwan TBI Ball screw with smooth movement. Working precision increased greatly.

2.Heavy duty frame body. Via rigorous force analysis and scientific structure design. Make the machine working table, improved stress resistance. Even via many many years, still no deformation.

3.14 tools automatic changer. The 5x10 ATC cnc router machine adopt Linear 14 tools automatic changer type. Change one tool, just need 8 second. The efficient is very very high.

4.HQD 9.0kw ATC air cooling spindle, due to air cooling, no need frequent maintenance like the water cooling. 24000rpm/min. The rotating speed, it can milling the surface of the wood very very smooth.

5.All our ATC cnc router machine, included the 5x10 cnc router machine, we all will advise the customer choose the Shimp reducer. It can reduce the inertia of the machine during high-speed operation. Avoid during the ATC cnc router machine working too fast, then, influence the ATC cnc rouer machine working precision.

6.The bearing, Taiwan TBI Ball screw and Hiwin square rails. During the machine working, under the control of Taiwan LNC control system, they will got maintained often by the auto oil lubrcation system.

7.Break point memory. If the machine working time outage suddenly, after the machine power supply again. The machie will start to work from the stoped place to continue to process.

8.The 5x10 ATC cnc router machine is very compatible. Only the design software can output the G code. All can working with the 5x10 ATC cnc router 1530. Such as Type3/Artcam/Castmate/CAD/CAM etc.


Taiwan LNC control system with full touch screen. The most professional ATC control system.

HQD 9.0kw ATC air cooling spindle. 24000rpm/min. Fast speed, Maintenance-free.


High quality BK level Bearing seat.

Lock to the seat with bearing.


Auto oil lubracation. Via system control, maintain the Gear, TBI Ball screw and Hiwin square rails.

Auto tool sensor, help 14 tools automatic position.


Indicator light, Display the working status of the machine at different stages.

Gear protect. During the machine working, it will protect the Gear clean.

Descriptions Parameters
Modle TEM1530C
Working area 1500*3000*200mm (can be customized)
Working Voltage 380V, 3PHASE, 50HZ (can be customized)
Control System Taiwan LNC control system
Spindle 9.0kw HQD ATC air cooling spindle
Spindle speed 24000rpm/min
Tool magazine Linear type + 14pcs ISO30 tool holders
Motor and Driver Taiwan Delta servo motors and drivers
Inverter 11kw Taiwan DELTA inverter VFD
Structure New type thicker and bigger heavy duty welded frame and gantry
Table surface T-slot and Vacuum Working Table with 4 Zones
Gantry structure Gantry Moving
Lubrication system Automatic lubrication system
Calibration Automatic tool sensor calibration
Transmission X,Y Axis: Helical rack, Taiwan Hiwin/PMI 25# Rail Linear Bearing with dust hood protection for Y axis.Z Axis: Taiwan Hiwin/PMI Rail 25# Linear Bearing & Taiwan TBI Ball Screw
Vacuum pump 7.5kw Vacuum Pump (380V, 3PHASE, 50HZ)
Dust Collector 3.0kw double pockets dust collector (380V, 3PHASE, 50HZ)
Command language G Code
Applications Wood, MDF, PVC, Acrylic, Carboard, Rubber, Foam.

# Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

# The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

# Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin,

ABS, PP, PE and other carbon mixed compounds.

# Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and

milling process.

IMG_1884 IMG_5116 IMG_6816 IMG_20210426_152457

CNC HS code: 8465990000

Laser HS code: 8456110090

Oscillating knife cutting machine:8453800000
